Preparing the Module

!
30
To attach the chassis rails to the module, follow these steps:
1. Place the module on a flat, stable surface.
2. Using four 10-24 x 1/4-in. screws, attach one of the chassis rails to the right side of
the module chassis. Ensure that the rail is installed in the correct direction (see
Figure 1-14).
Caution: Use only the 1/4-in. (0.64 cm) length screws. Longer screws damage
internal components in the module.
3. Using five 10-24 x 1/4-in. screws, attach the second rail to the left side of the module
chassis. Again, ensure that the rail is installed in the correct direction.

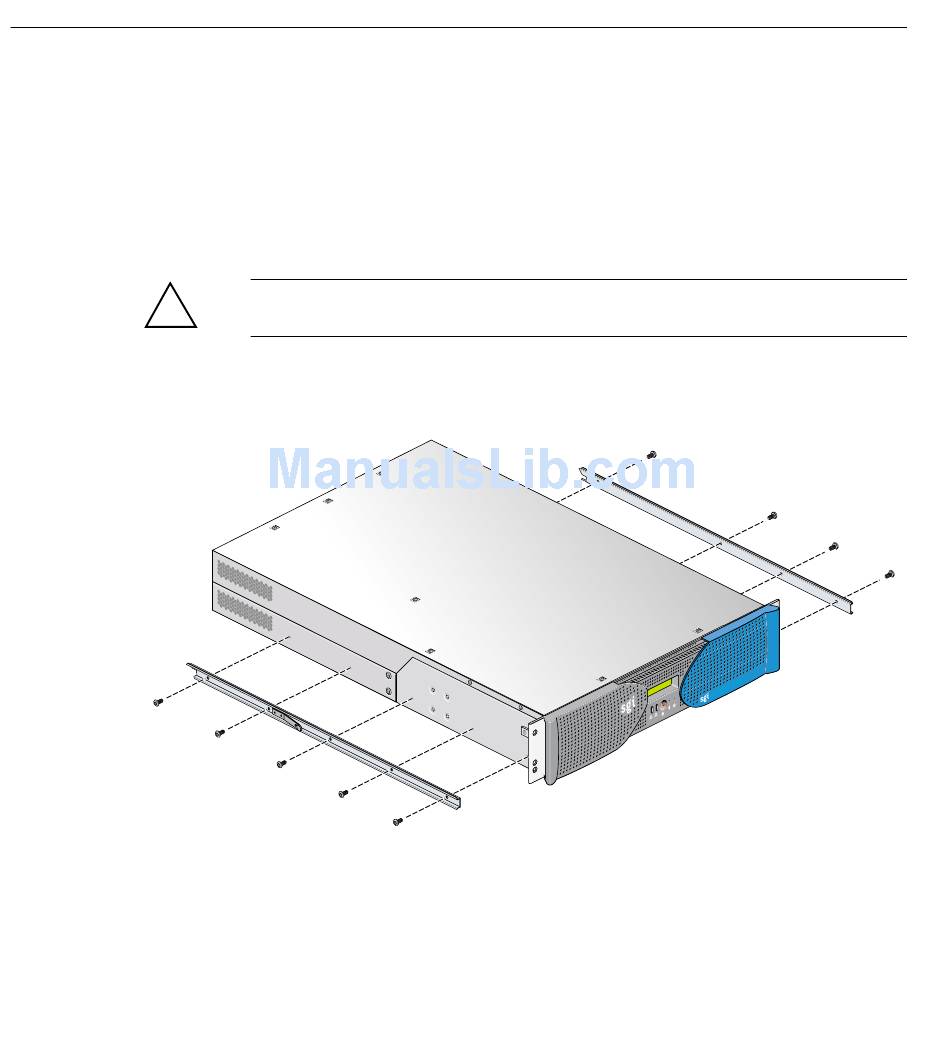

Attaching Chassis Rails to the Module Chassis
Figure 1-14
