A: Technical Specifications and Pinouts

Serial Ports

88
The service nodes and the optional router modules have 9-pin serial interface connectors. These
ports are for console interface and are capable of transferring data at rates as high as 230 kbps.
Other features of the ports include the following:
• Programmable data, parity, and stop bits
• Programmable baud rate and modem control

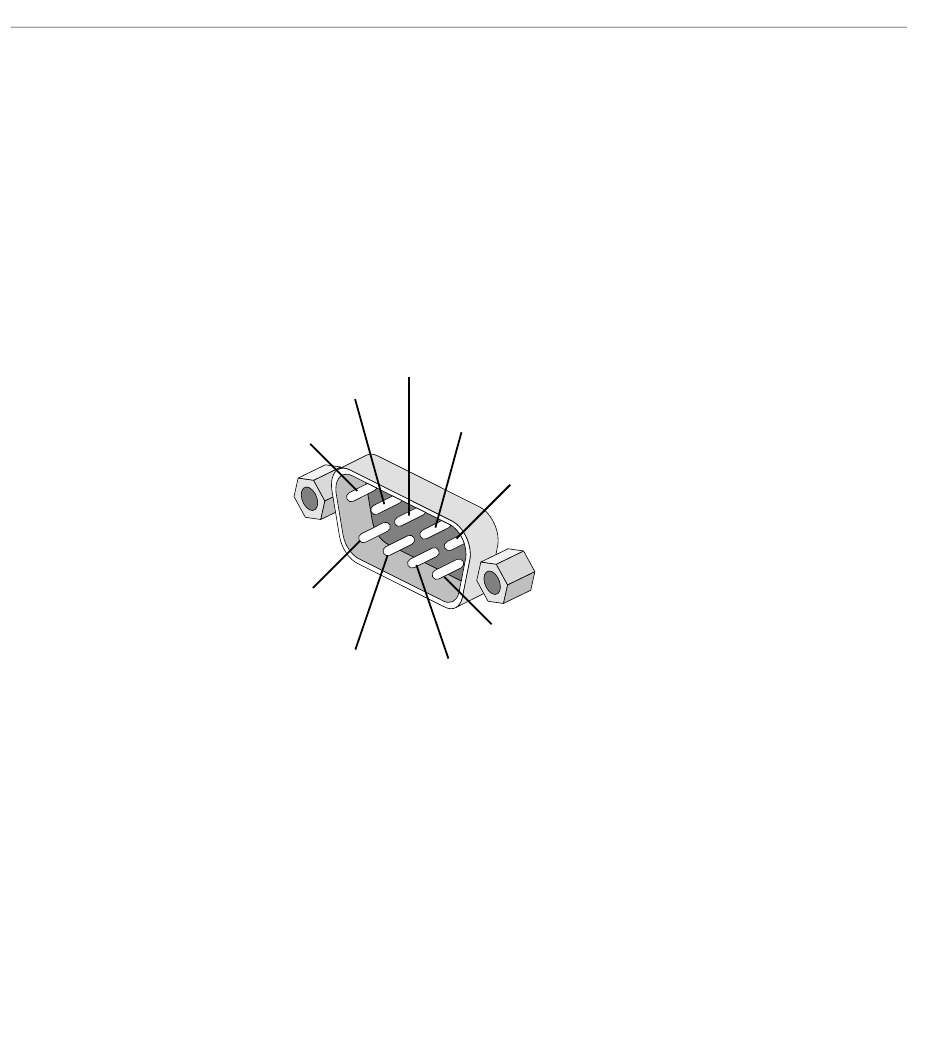

Figure A-3 shows a serial port.
Pin 3
Transmit
Data (TXD)
Pin 2
Receive Data
(RXD)
Pin 1
Data Carrier
Detect (DCD)
(not used)
Pin 6
Data Set
Ready (DSR)
(not used)
Pin 7
Request to
Send (RTS)
Figure A-3 Serial Port Connector
Pin 4
Data Terminal
Ready (DTR)
(not used)
Pin 5
Ground
Pin 9
Ringing Indicator (RI)
(not used)
Pin 8
Clear to Send
(CTS)
