2: Removing and Replacing System Components

Replacing the Power Switch Cable Module

42
Follow these steps to remove the power switch cable module:
1. Remove the chassis cover as described in "Removing the Chassis Cover" on
page 21.
2. Disconnect the power switch cable connector from the system board. See
Figure 2-17 for the location of the power switch cable connector.
Power switch
module

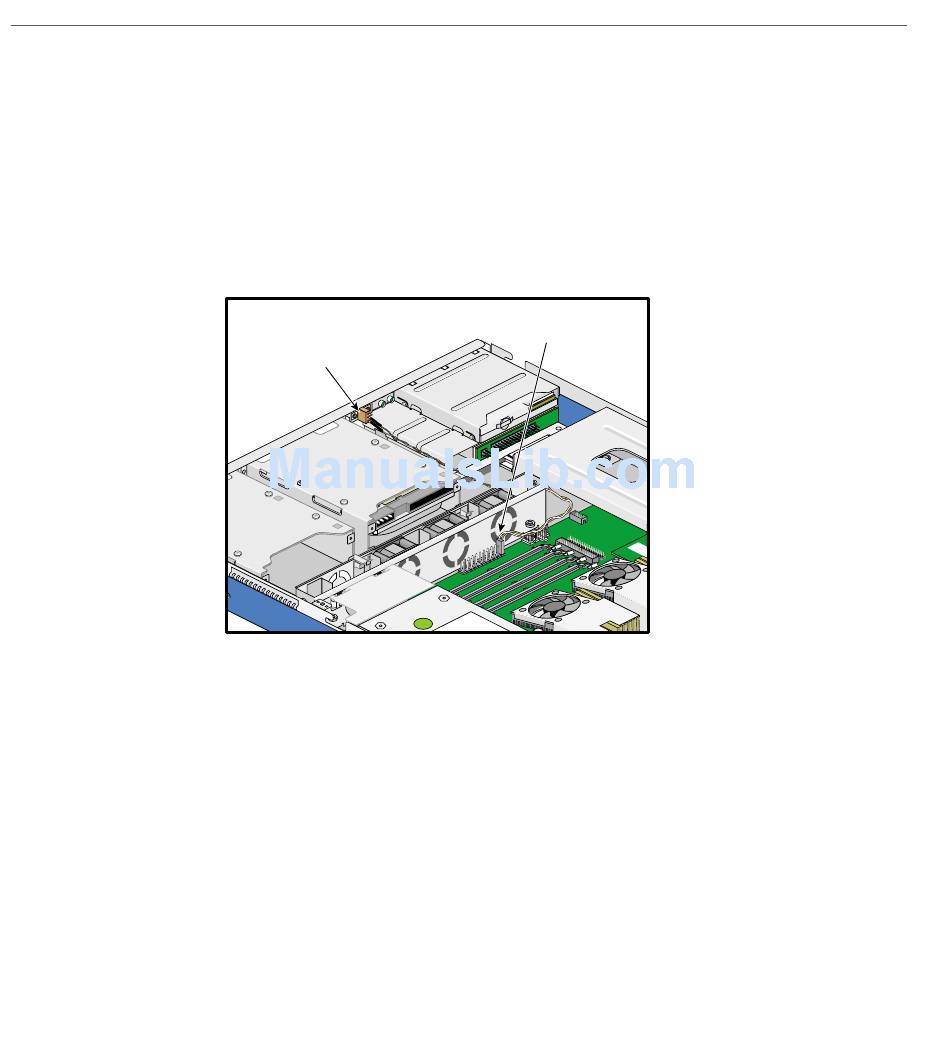

Figure 2-17 Location of the Power Switch Cable Connector
3. Remove two screws from the power switch cable module as shown in Figure 2-18.
Power switch
connector
