6: Installing and Removing Customer-replaceable Units

L1 Controller Display

196
The L1 controller, which is used to monitor and manage the base compute module of the
Origin 350 server system, has a display located on the front panel of the base compute
module as shown in Figure 6-31. Every Origin 350 server system module is factory-
shipped with an L1 controller display. This section describes how to replace an L1
controller display panel for a base compute module. (You can also use these instructions
to replace an L1 controller display panel for a system expansion compute module and an
MPX module.)

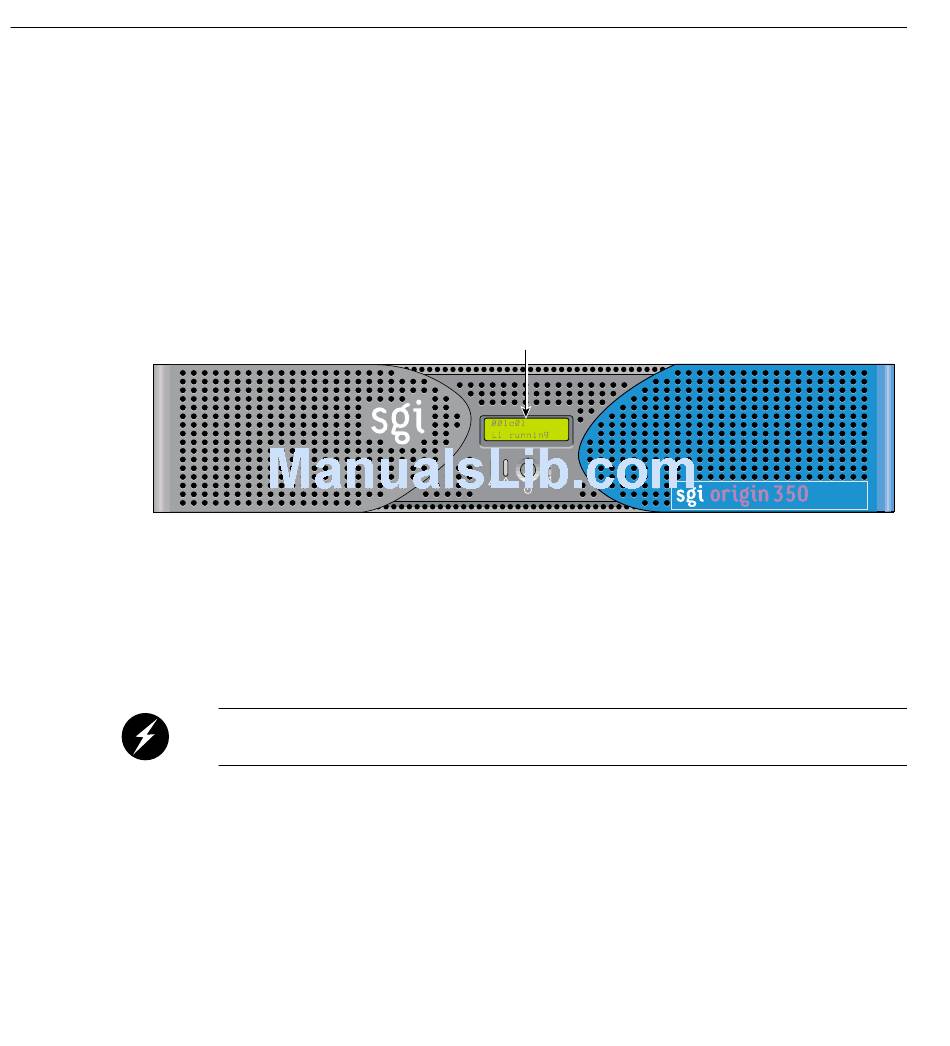

Figure 6-31 L1 Controller Display on Base Compute Module
To replace an L1 controller display, follow these steps:
1. Power off the server system as described in "Powering the Server System On and
Off" on page 53.
2. Disconnect all of the cables at the rear of the module.
Warning:
Components may be hot. To avoid injury, allow the components to cool
for approximately five minutes before you proceed with these instructions.
3. Remove the two screws that secure the module to the front rails of the rack.
4. Pull the module from the rack until it is stopped by the safety latches.
L1 controller display
