Figure 4-2 Local Memory Layout; Table 4-2 Memory Dimm Specifications - Silicon Graphics Origin 350 User Manual

007-4566-001

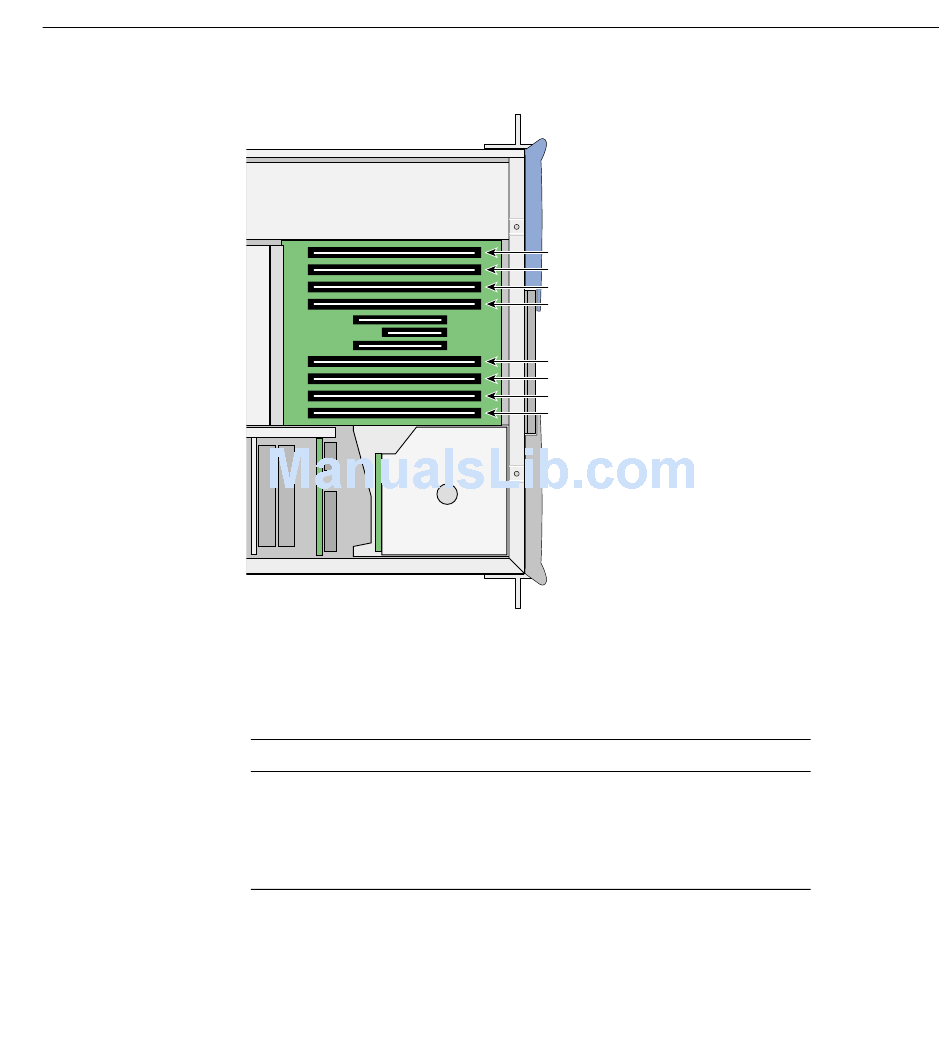

Figure 4-2 Local Memory Layout
Table 4-2 lists the DIMM sizes that the IP53 node boards support.
Memory DIMM Specifications
Table 4-2
DIMM Capacity Chip Capacity
512 MB 128 MB
1 GB 256 MB
Slot 7 Banks 6 and 7
Slot 5 Banks 4 and 5
Slot 3 Banks 2 and 3
Slot 1 Banks 0 and 1
Slot 6 Banks 6 and 7
Slot 4 Banks 4 and 5
Slot 2 Banks 2 and 3
Slot 0 Banks 0 and 1
Total Memory Capacity
2 DIMMs (1 bank pair): 1 GB
8 DIMMs (4 bank pairs): 4 GB
2 DIMMs (1 bank pair): 2 GB
8 DIMMs (4 bank pairs): 8 GB
