SGI TP9400 and SGI TP9500 Storage Systems

007-4566-001
The SGI TP9400, shown in Figure 2-16, and the SGI TP9500 are highly scalable RAID
storage subsystems. These storage systems have vast storage capacities and can grow to
whatever size you require without disruption to normal processing activities. This
continuous availability enables all active components to be configured redundantly and
installed "hot" as customer-replaceable or expansion units.
The TP9400 and TP9500 storage systems connect to compute modules via Fibre Channel
PCI cards.
For more information about the TP9400 and TP9500 storage systems, see SGI Total
Performance 9400 and SGI Total Performance 9500 RAID User's Guide (007-4304-00x).

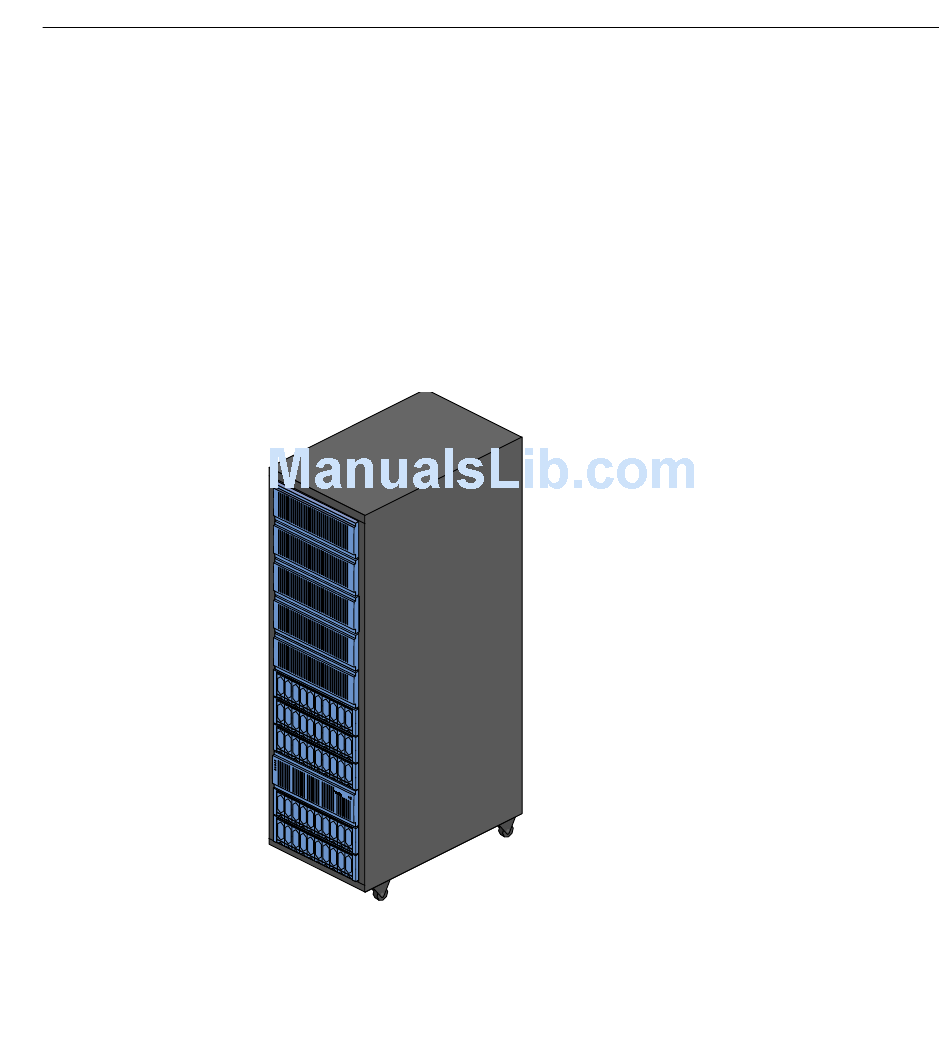

Figure 2-16 SGI TP9400 Storage System
System Components
93
