Figure 1-3 Dimensions Of Tall Rack Shipping Crate - Silicon Graphics Origin 350 User Manual

Installing a Rack
If your site does not have a loading dock, arrange for a forklift to unload the system from
the transportation vehicle. Ensure that two or three people are available to help unload
the equipment. Move all crates slowly and carefully.

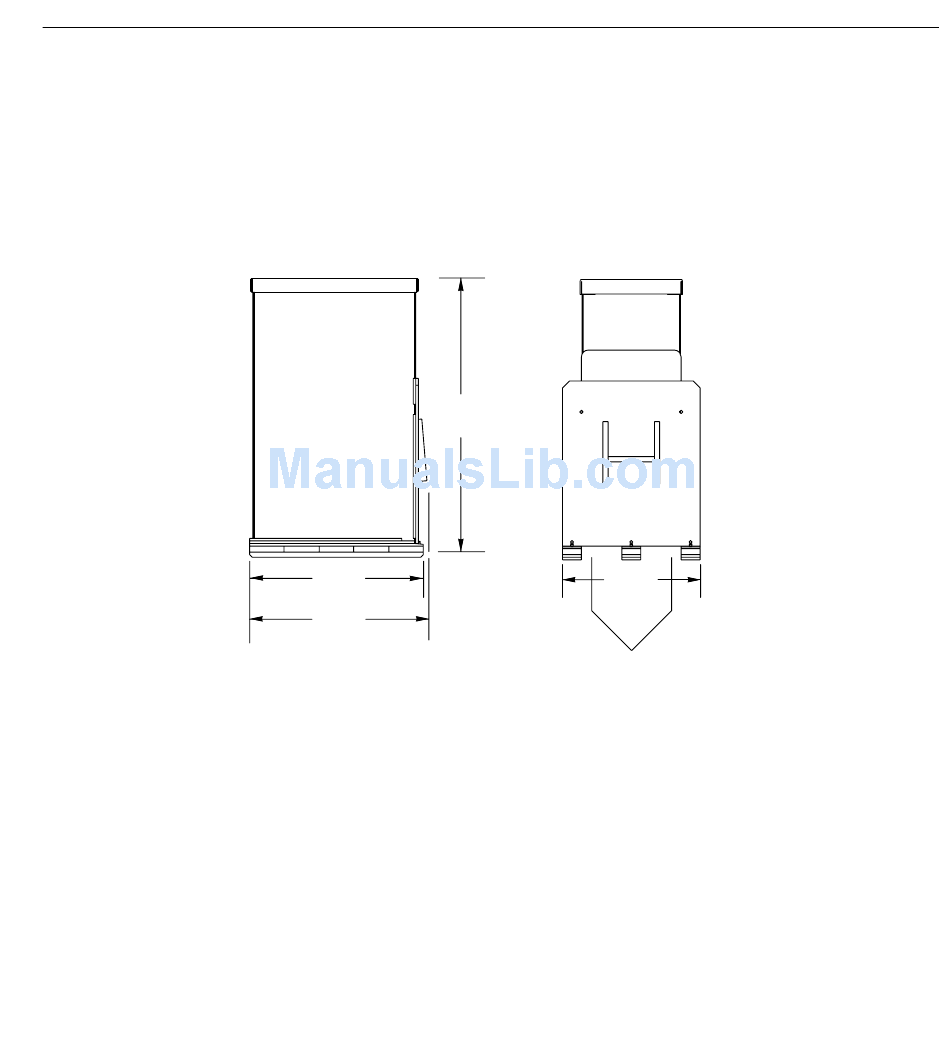

Figure 1-3 shows the lift openings and dimensions of a tall rack shipping crate. This
figure also shows where to position the pallet jack.
Side view End view
81.5
(2070.1 mm)
40
50.5
(1016 mm)
(1524 mm)
51.25
(1301.75 mm)
Pallet jack position
Figure 1-3 Dimensions of Tall Rack Shipping Crate
007-4566-001 11
