007-4566-001

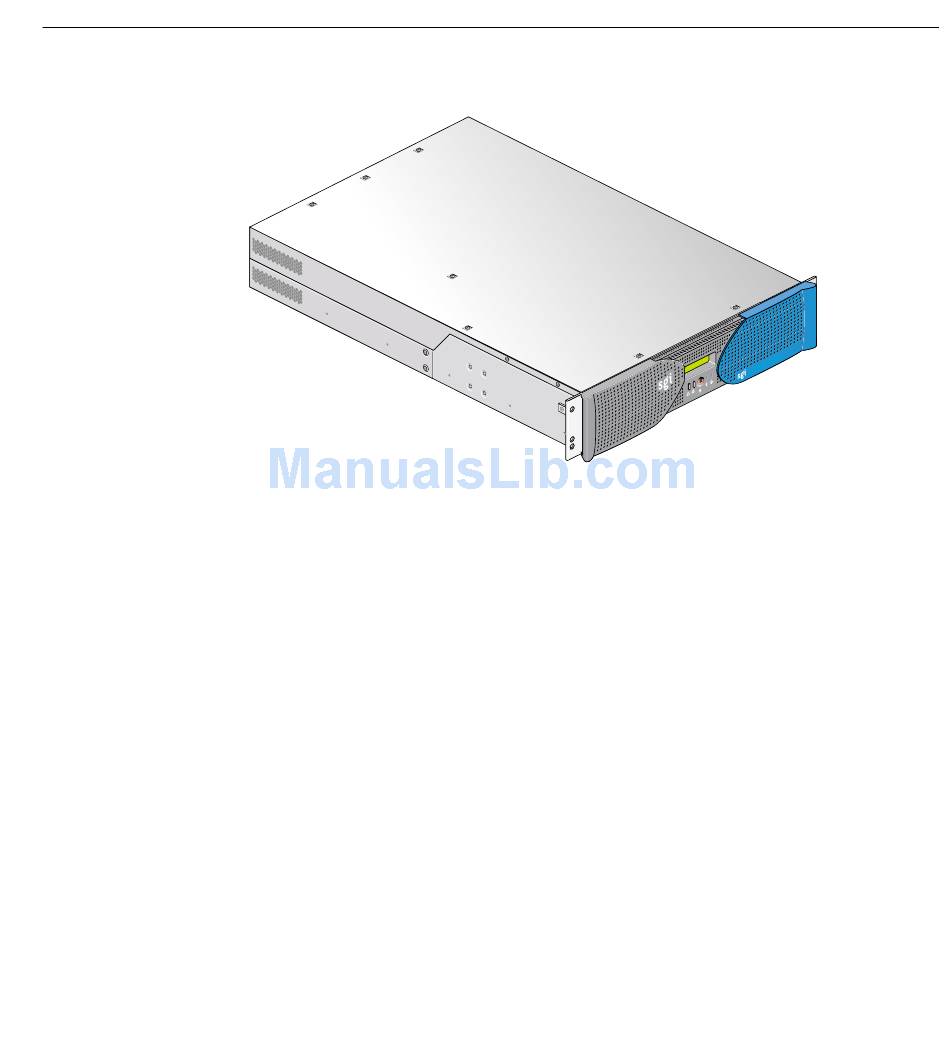

Figure 3-1 Front and Side Views of a Compute Module
The compute module includes the following features:
• L1 controller, which manages and monitors functions of the compute module such
as system temperature. The module includes an L1 controller display, which
displays system processes and error messages.
• Optional internal read-only slim-line DVD-ROM drive, and two hard disk drives.
• One or two power supplies. The second power supply, which is optional, is
redundant to assure that your compute module will always have power.
• NUMAlink 3 port, which connects your system to a system expansion compute
module, an MPX module, or a 4U PCI expansion module.
• Crosstown2 XIO port is supported, which enables the server system to connect to an
InfiniteReality graphics pipeline.
System Features
109
