Connecting a Multiple-module Server System to a Power Source

007-4566-001

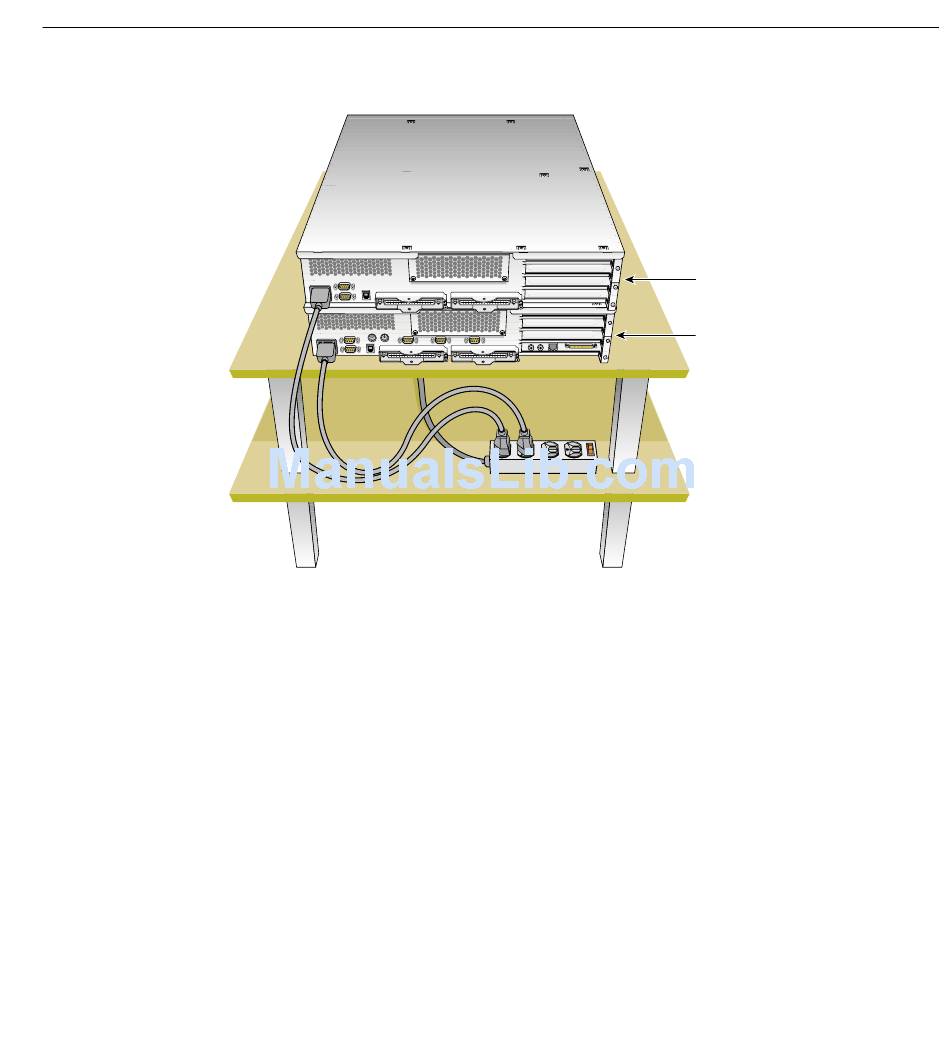

Figure 1-28 Connecting a Dual-module System to a Power Source
This section describes how to cable the multiple modules that make up a
multiple-module server system to a power source. Figure 1-29 shows a sample of a
multiple-module server system that includes the following modules (and other items):
• L2 controller
• Two PCI expansion modules
• NUMAlink module
• System expansion compute module
• Base compute module
• TP900 storage module
Cabling the Server System to a Power Source
MPX module
Base compute module
49
