007-4566-001

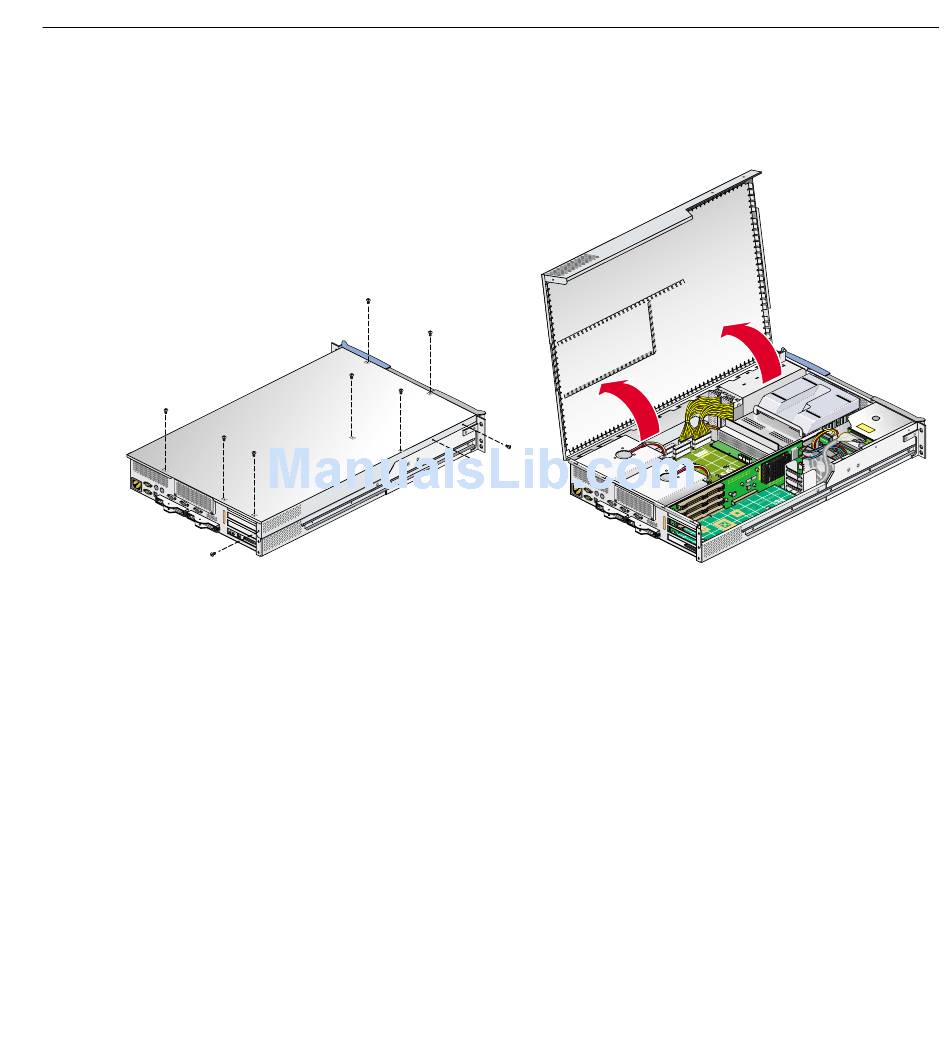

5. To access the area where the L1 display is replaced, remove the ten Phillips screws
shown in Figure 6-32, and lift and open the hinged cover.
Figure 6-32 Opening the Module to Access the L1 Controller Display
6. On the front panel of your system, remove the front bezel by unscrewing the two
Phillips screws holding the bezel to the chassis, as shown in Figure 6-33A.
7. Holding the L1 display cover with one hand, unscrew the single Phillips screw
holding the L1 display cover to the chassis, as shown in Figure 6-33B. Gently
unhook and pull away the L1 display cover from the chassis.
8. Unscrew the two Phillips screws holding the L1 controller display panel to the L1
display protective cover, as shown in Figure 6-33C.
9. Gently disconnect the L1 controller cable from the connector on the L1 controller
display, as shown in Figure 6-33D.
L1 Controller Display
197
