Main Power Connector

Figure 4-2 shows the pins on the main power connector. Table 4-1 lists the pin signal and
color.
1
11

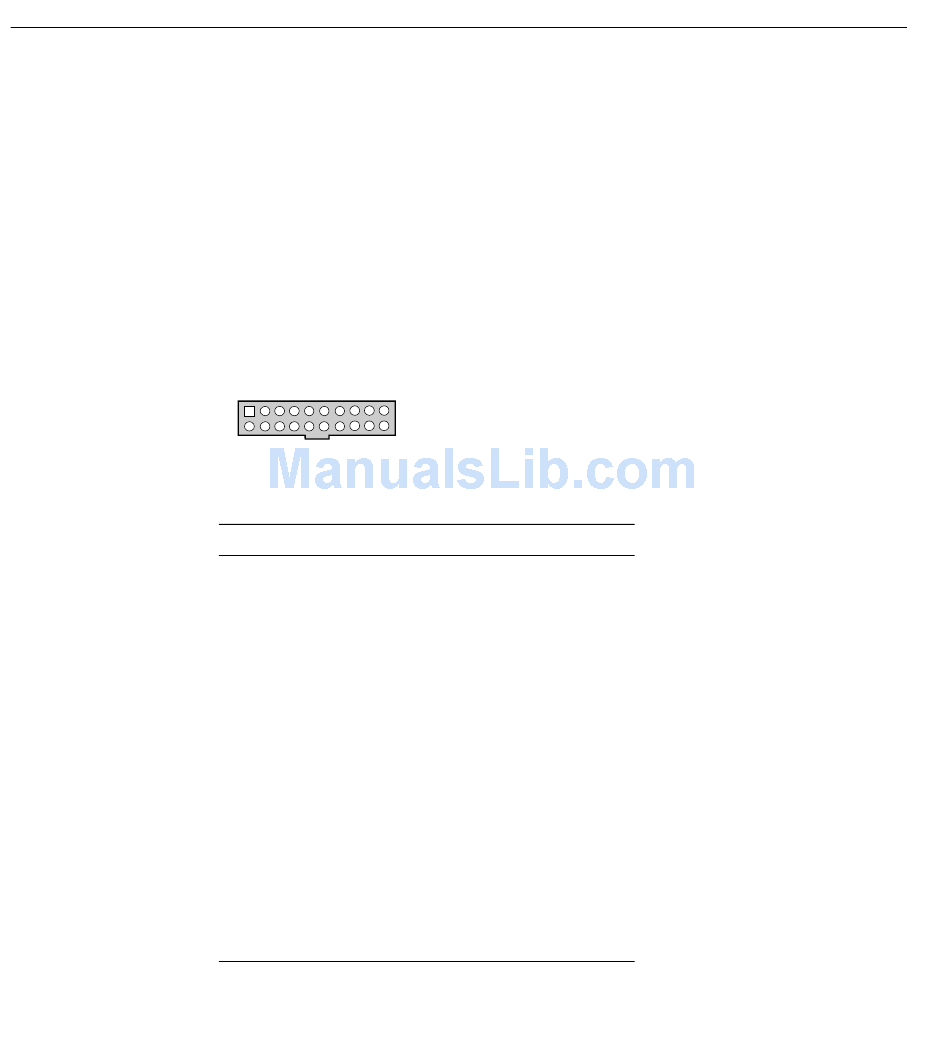

Figure 4-2 Main Power Connector Pins
Table 4-1 Main Power Connector Pinouts
Pin Signal
1 +3.3 VDC
2 +3.3 VDC
3 +3.3 VDC
4 COM
5 COM
6 COM
7 COM
8 +12 VDC
9 +12 VDC
10 +12 VDC
11 +3.3 VDC
12 +3.3 VDC
10
20
Wire Color
Orange
Orange
Orange
Black
Black
Black
Black
Yellow
Yellow
Yellow
Orange
Orange
