Adjusting the Position of the Rackmounted Module

!
38
6. Secure the module to the rack by inserting a 10-32 x 1/2-in. Phillips screw in the top
hole of each chassis ear (see Figure 1-20).

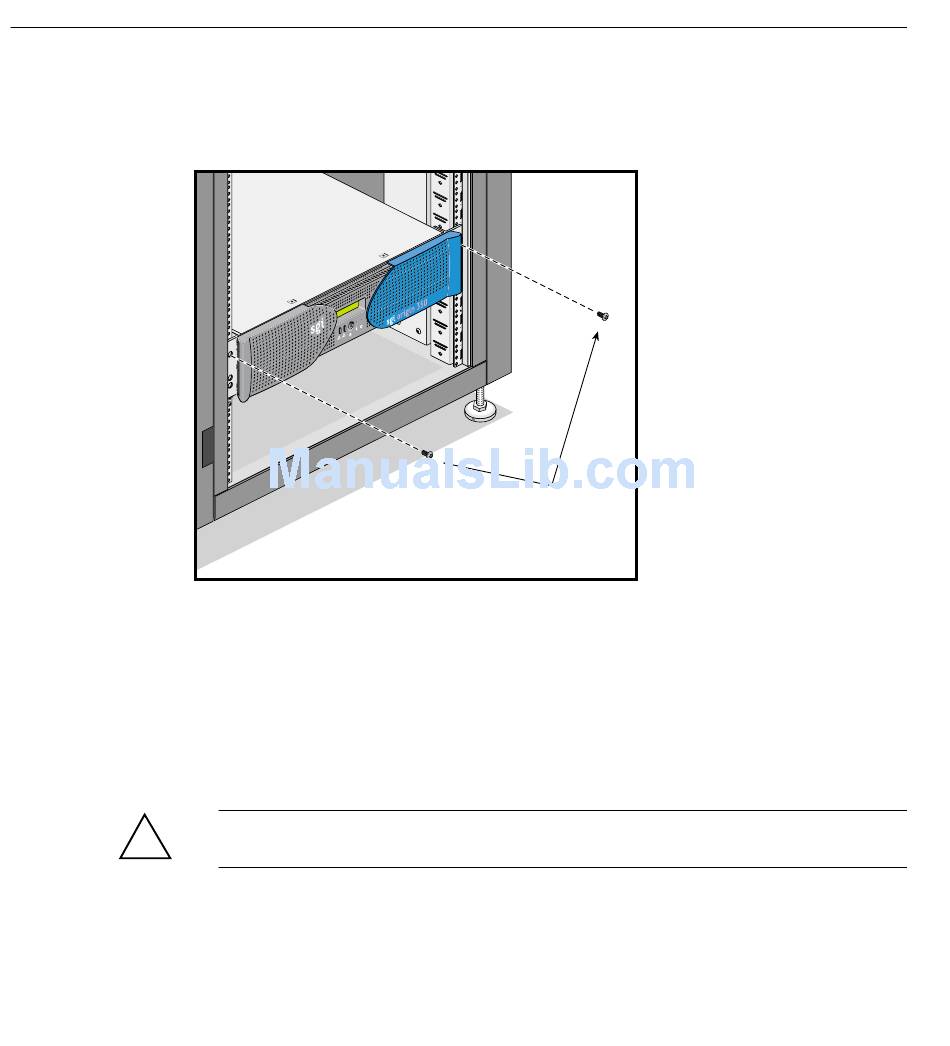

Figure 1-20 Securing the Module to the Rack
Once the module is installed in the rack, you can adjust the position of the module in the
rack (upward and sideways). To adjust the position of the module, loosen the front
mounting screws, adjust the module to the desired position, and then tighten the
mounting screws.
Caution: Do not lift the module by its bezel; it is not designed to handle the weight of
the module. Instead, use the chassis ears to move the module (see Figure 1-20).
1 0
9
8
7
6
5
4
3
2
1
10-32 x 1/2-in. screws
