2Gb SGI TP9100 Storage System

007-4566-001
OUTPUT
GOOD
FAULT

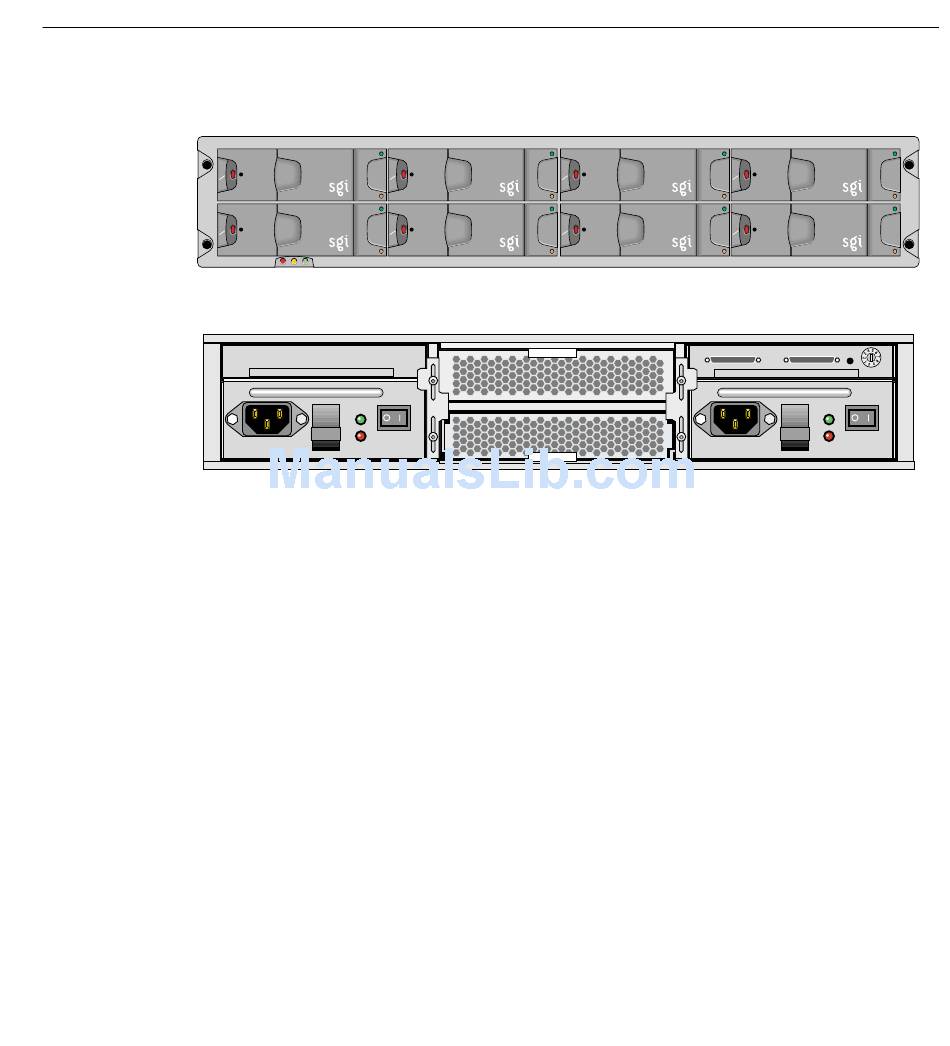

Figure 2-14 SGI TP900 Storage Module
The 2Gb SGI TP9100, shown in Figure 2-15, is an affordable, entry-level RAID storage
array that is easily expandable and comes in either a deskside tower or a rackmounted
configuration. You can start with a basic JBOD configuration and later add RAID
controllers, or you can start with a RAID configuration.
The 2Gb SGI TP9100 storage system connects to the compute module via a Fibre Channel
PCI card. For more information about the SGI TP9100 storage system, see SGI Total
Performance 9100 (2 Gb TP9100) Storage System User's Guide (007-4522-00x).
