6: Installing and Removing Customer-replaceable Units
172
10. If you are replacing the card that you have removed, proceed to step 10 of
"Installing a Card" on page 158. If you are not replacing the card that you have
removed, proceed to the next step.
11. Place a blanking plate to cover the slot where you removed the card, and screw in
the retaining screw, as shown in Figure 6-14. After installing the blanking plate, if
you have removed a card from one of the two lowermost slots, proceed to the next
step. Otherwise, proceed to step 14.

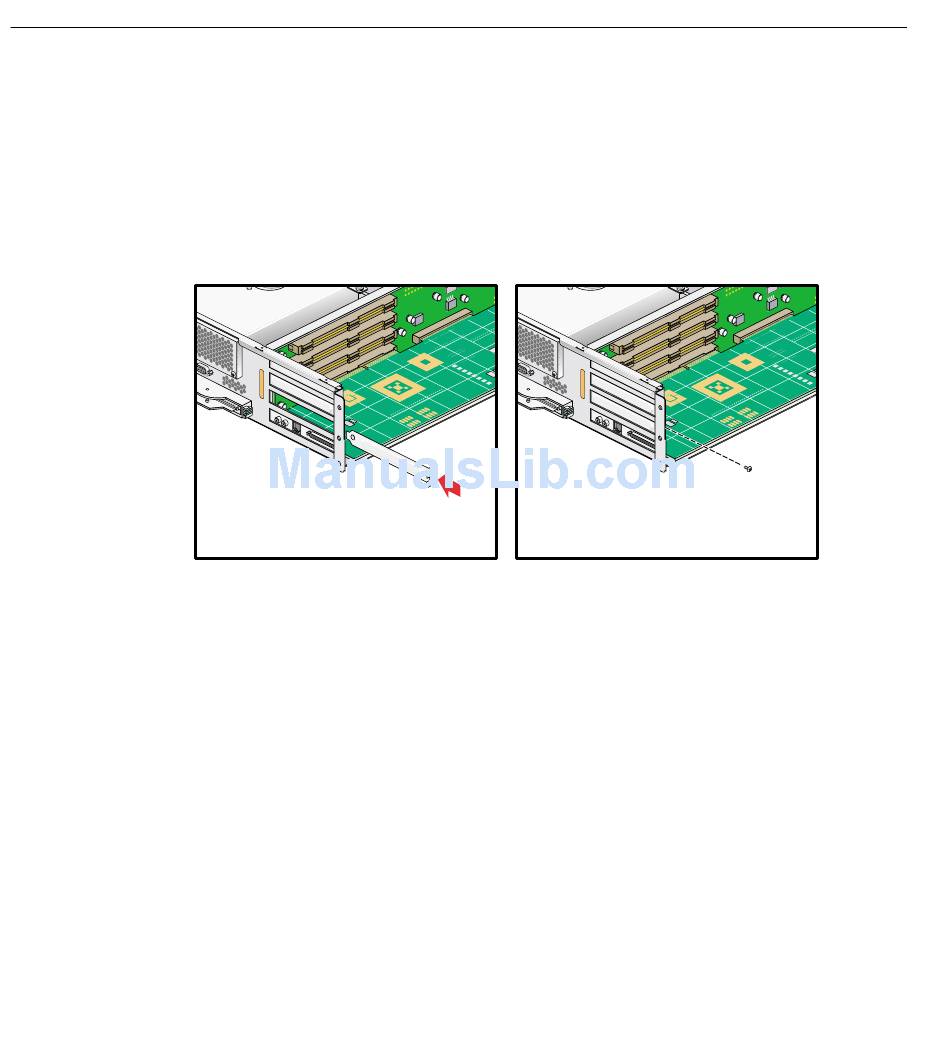

Placing a Blanking Plate
Figure 6-14
007-4566-001
