Power Supplies

External Components

Front Panel Items

007-4566-001
The MPX module can contain one or two power supplies; the second power supply is
optional and is required only when you want redundant power. The power supply can
input 110/220 VAC and output 500 W (12 VDC, 5 VDC, and -12 VDC).
Both power supplies are hot-swappable. They are located at the front right side of the
module. The primary power supply is the left supply and the redundant power supply
is the right supply.
This section describes the external components of the MPX module, which are located in
the front and rear panels.

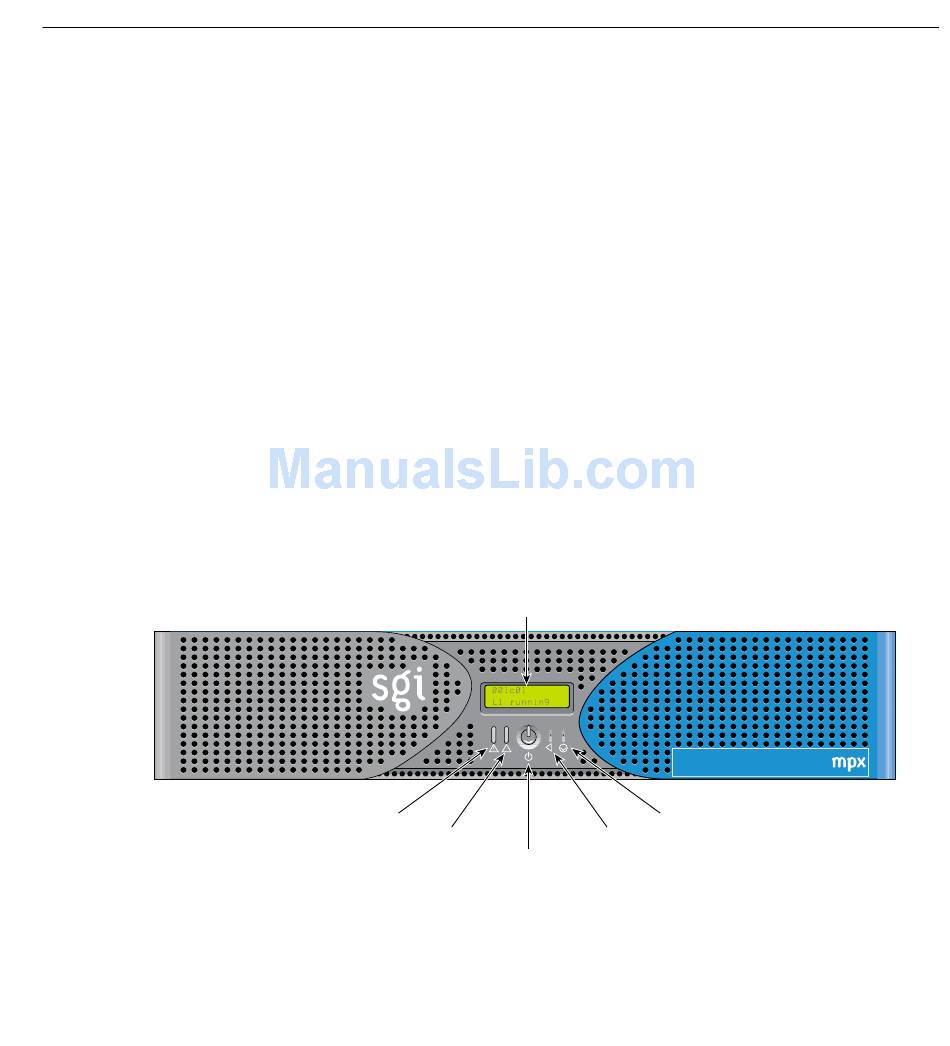

This section describes the front panel controls and indicators of the MPX module, as
shown in Figure 4-3.
Failure LED
Service-required LED
Front Panel Items
Figure 4-3
L1 controller display
Reset
Power button
with LED
External Components
NMI
