Storage Expansion

007-4566-001

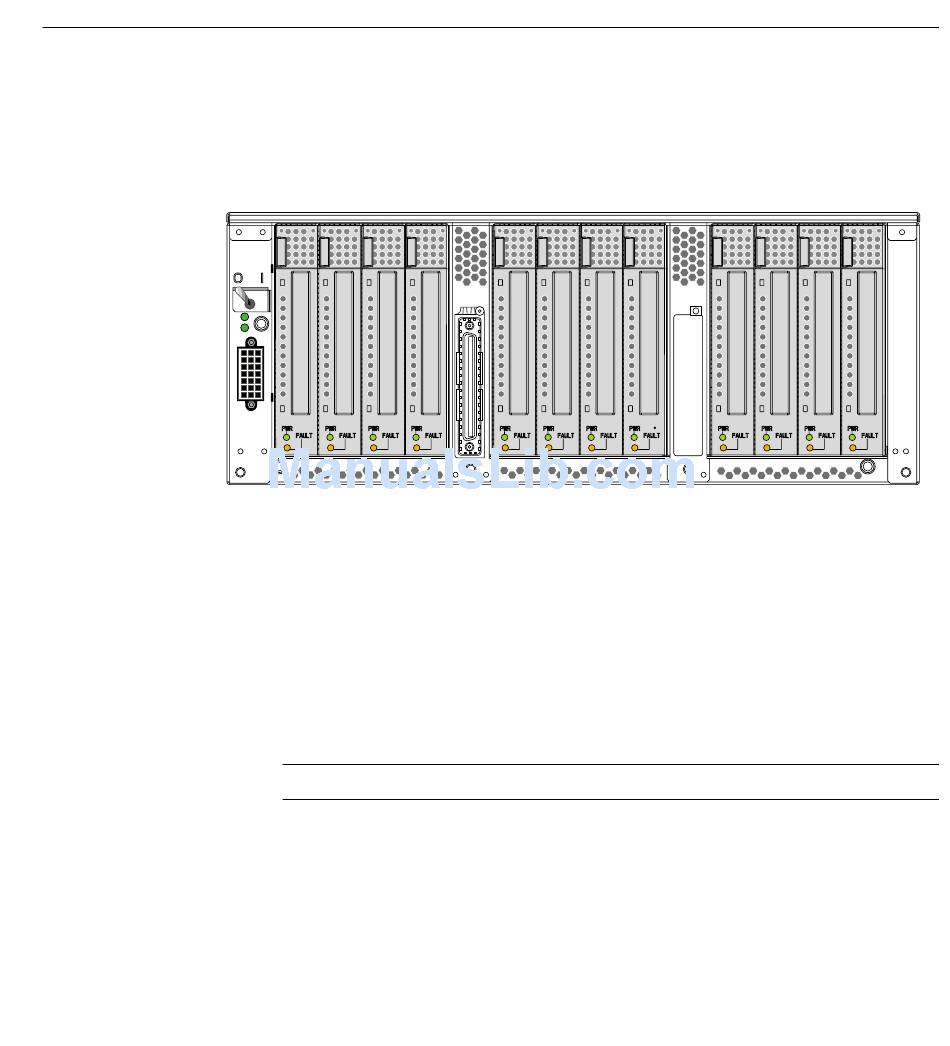

Figure 2-13 shows the PCI card slot numbering on the PCI expansion module.
Bus 1 Bus 2
Slot Slot
1 2 1 2
PCI Card Slot Numbering on the PCI Expansion Module
Figure 2-13
The base compute module contains two disk-drive bays; however, you can add
additional storage to the system as follows:
• For a SCSI (small computer system interface) JBOD (just a bunch of disks) solution,
SGI offers the TP900 storage module, or SCSI disks can be added to expansion
compute modules.
Note: Adding SCSI disks to an expansion compute module requires an IO9 PCI card.
• For a Fibre Channel solution that supports both JBOD and RAID configurations,
SGI offers the 2Gb SGI TP9100 storage system.
• For Fibre Channel RAID solutions, SGI offers the SGI TP9400 storage system and
the SGI TP9500 storage system.
Bus 3 Bus 4
Slot Slot
1 2 1 2
System Components
Bus 5 Bus 6
Slot Slot
1 2 1 2
89
