Removing a Module on Shelf Rails from a Rack

44

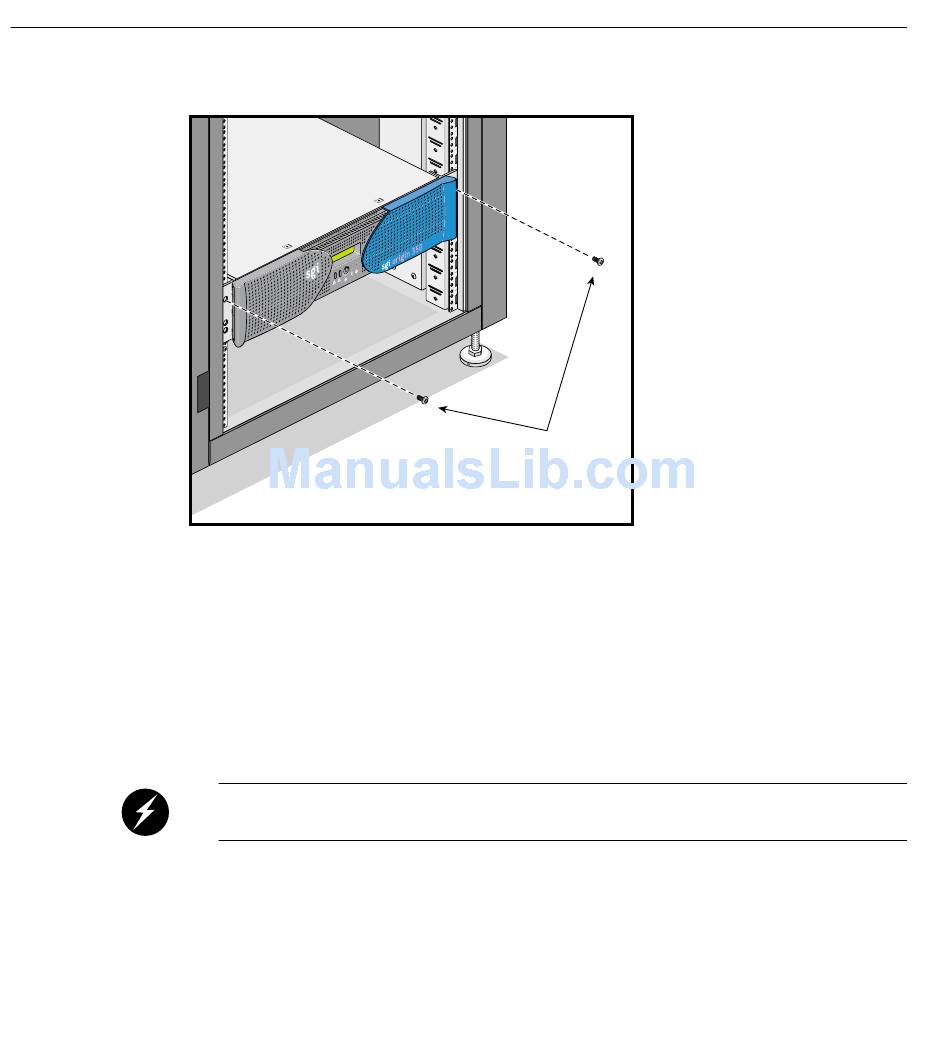

Figure 1-24 Securing the Module to the Rack
To remove the module that is on shelf rails on a rack, follow these steps:
1. Power off the module. For instructions on how to power off the module, see
"Powering the Server System On and Off" on page 53.
2. Disconnect all of the cables at the rear of the module.
Warning:
Components may be hot. To avoid injury, allow the components to cool
for approximately five minutes before you proceed with these instructions.
3. Remove the two screws and clip nuts that secure the module to the front rails of the
rack.
4. Remove the two screws and clip nuts that secure the module to the rear rails of the
rack.
1 0
9
8
7
6
5
4
3
2
1
10-32 x 1/2-in. screws
