Figure 6-34 Installing An L1 Controller Display Panel - Silicon Graphics Origin 350 User Manual

6: Installing and Removing Customer-replaceable Units
A
C
200
Red stripe

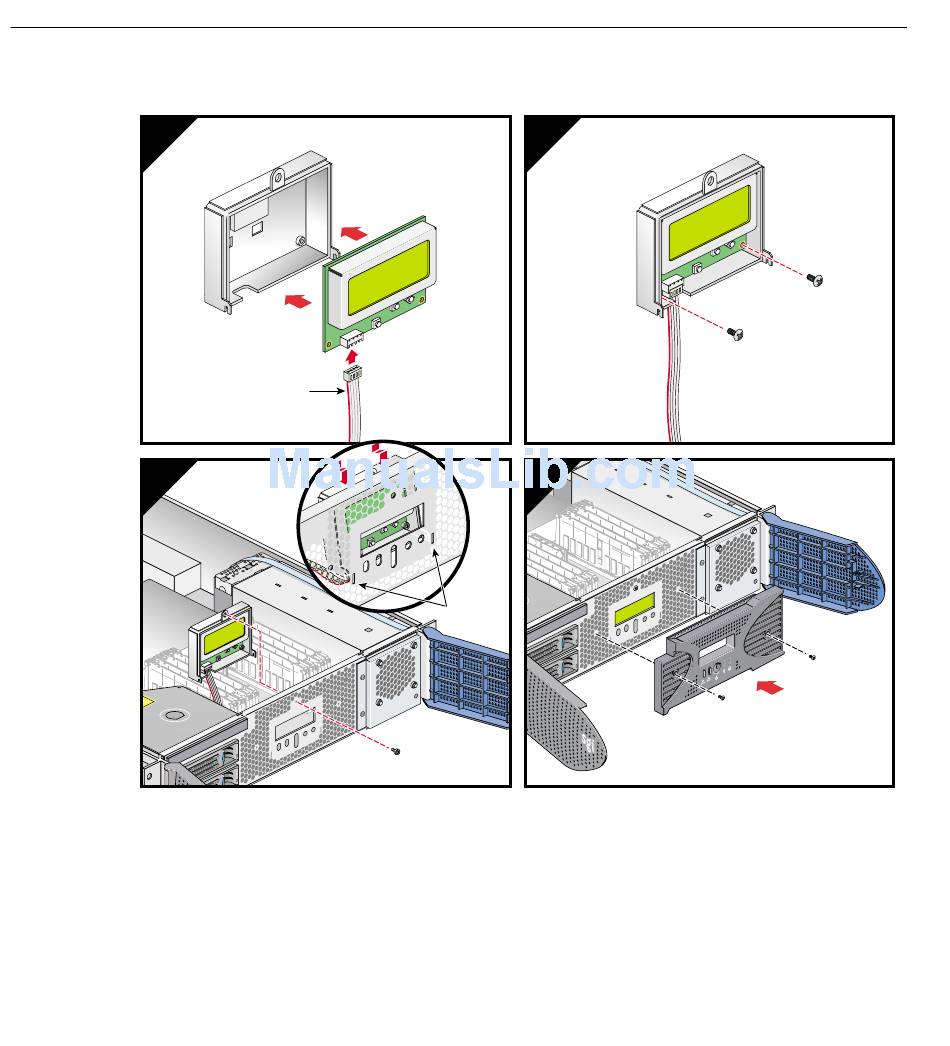

Figure 6-34 Installing an L1 Controller Display Panel
14. Attach the hinged cover and secure it to the module with the ten Phillips screws.
15. Press the safety latches on both sides of the module, and slide the module into the
rack.
16. Install the two screws that secure the module to the front rails of the rack.
B
D A
Hook slots
