Power Supplies

External Components

Front Panel Items

122
The compute module can contain one or two power supplies; the second power supply
is optional and is required only when the customer wants redundant power. The power
supply can input 110/220 VAC and output 500 W (12 VDC, 5 VDC, and -12 VDC.
Both power supplies are hot-swappable. They are located at the front right side of the
module. The primary power supply is the left supply, and the redundant power supply
is the right supply.
This section describes the external components of the compute module, which are
located in the front and rear panels.
This section describes the front panel controls and indicators of the compute module, as
shown in Figure 3-5.
Failure LED
Service-required LED

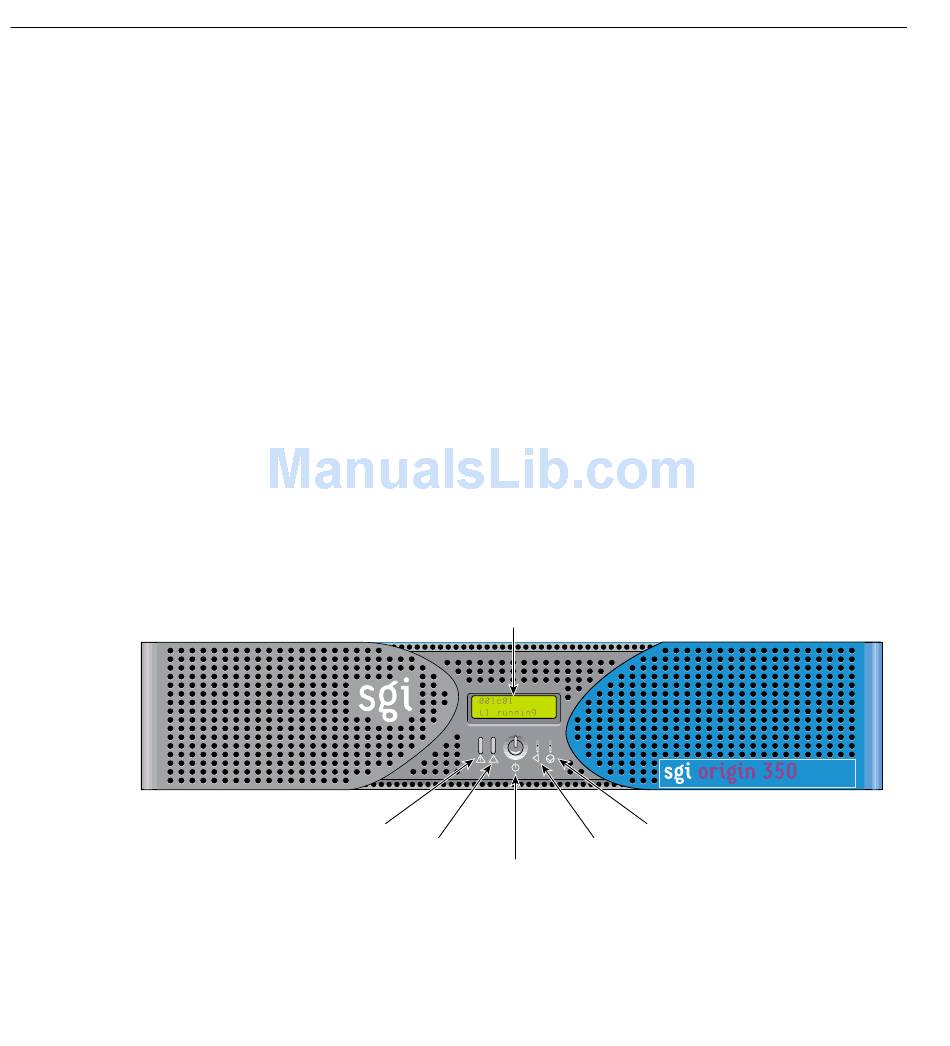

Figure 3-5 Front Panel Items
L1 controller display
Reset
Power button
with LED
NMI
