A: Technical Specifications

Stereo Jack Connector Conductor

232

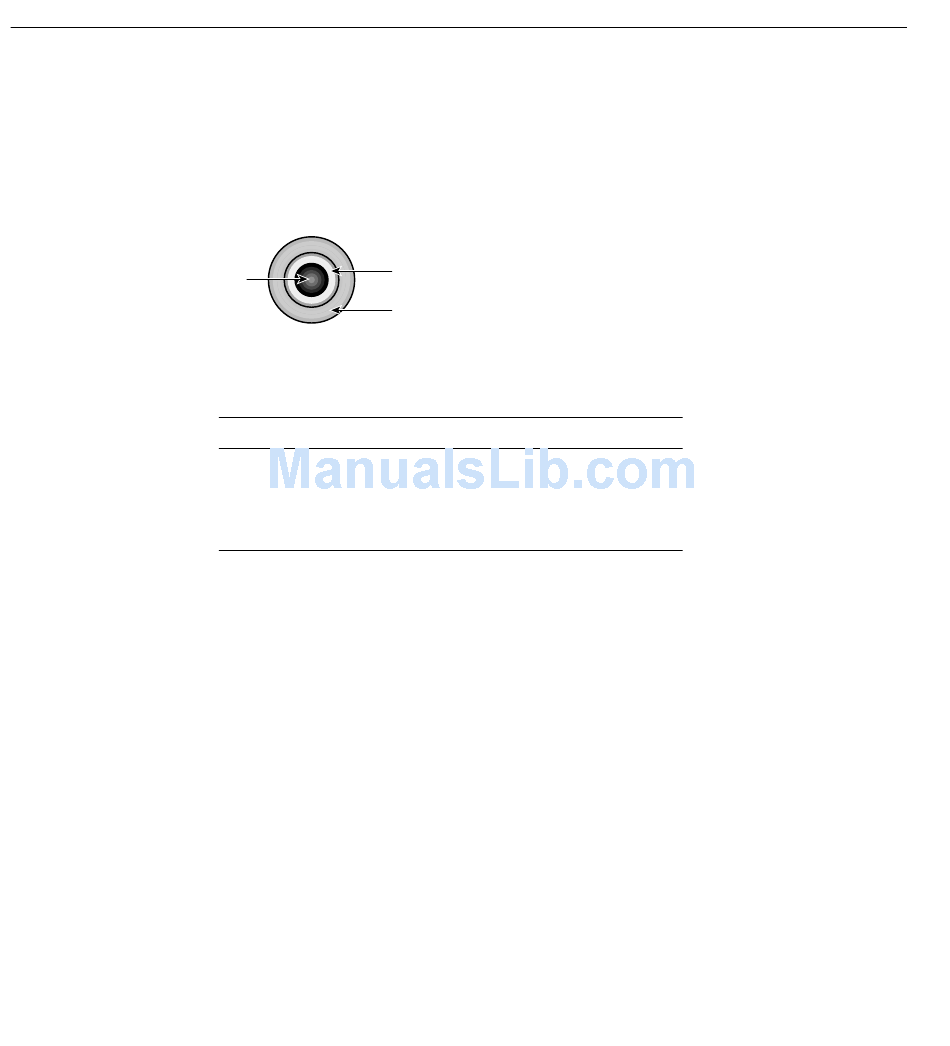

Figure A-10 shows the stereo jack connector conductors that are used for the RT interrupt
input and RT interrupt output ports of the IO9 PCI card. Table A-23 lists the conductor
assignments for the stereo jack connector.
Ring
Tip
Sleeve
Figure A-10 Stereo Jack Connector Conductors
Table A-23 Conductor Assignments for Stereo Jack Connector
Conductor Function
Tip +5 V
Ring Interrupt (active low)
Sleeve Chassis ground and cable shield
007-4566-001
