3: Compute Module
128

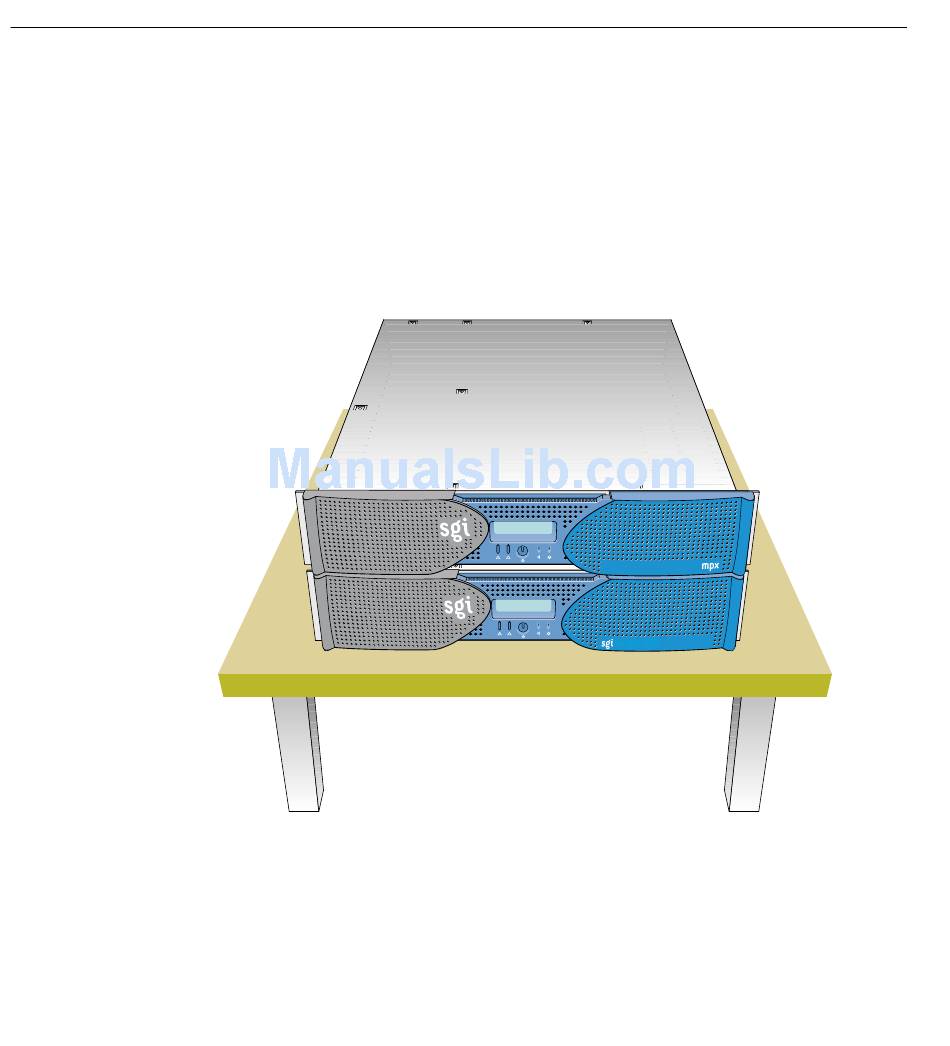

Figure 3-7 shows an Origin 350 server system on a table top that includes the following
items:
• A 2U base compute module has 4 processors, 8 GB of local memory, and three
PCI/PCI-X card slots. The fourth lowermost PCI/PCI-X slot comes with a
factory-installed IO9 PCI card. (Because the IO9 card is a 66 MHz PCI card, the slot
immediately above where the IO9 card is installed, which is on the same bus, can
only accommodate PCI cards that will run at a speed of 66 MHz or slower.)
• An MPX module adds 8 GB of local memory and four PCI/PCI-X card slots.
Figure 3-7 System with One Base Compute Module and One MPX Module
