1: Installation and Operation
34
5. Insert the front and rear brackets of one of the slide rails between the rack rails and
the barnuts, as shown in Figure 1-17.
6. Tighten the screws on the front- and rear-end of the rails. Do not tighten firmly at
this point, because all screws will be firmly tightened once the module is installed in
the rack.
7. Repeat steps 5 and 6 to attach the second slide rail to the other side of the rack.

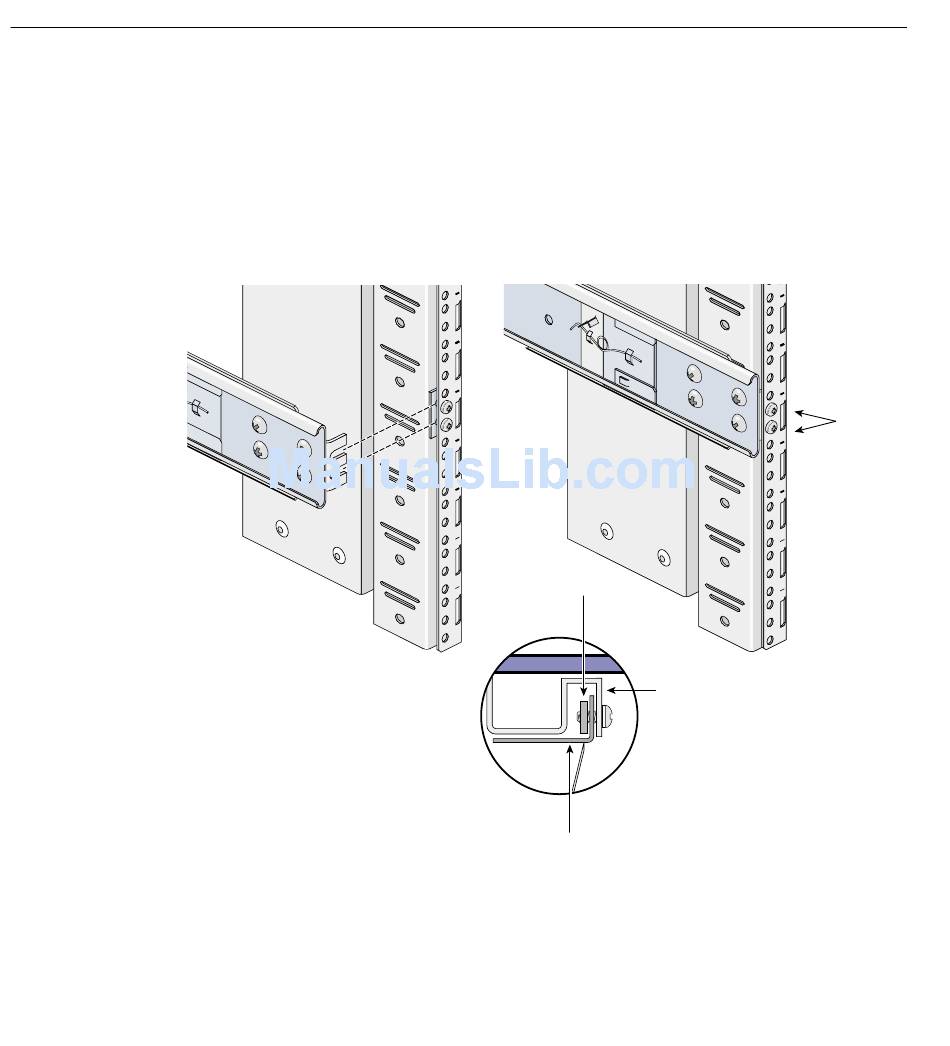

Attaching the Slide Rail to the Rack
Figure 1-17
7
6
5
4
3
2
Barnut
1
Slide rail assembly
7
6
5
Tighten
screws
4
3
2
1
Rack rail
007-4566-001
