1: Installation and Operation
CONSOLE port
52
1. Ensure that the L1 controller of the base compute module is powered on. When the
base compute module is connected to a power source, the L1 controller should be
powered on.
Note: When powered on, the L1 controller displays L1 running. If it does not
display L1 running, check the connection between the base compute module and
the power source. In addition, ensure that the circuit breaker of the power source is
on.
2. Power on the system console.
3. Ensure that the system console has the following network settings:
• Baud 38400
• No parity
• 8 data bits
• 1 stop bit
• Hardware flow control on (RTS/CTS)
4. Type cu -l ttyd2 for an IRIX-based console, or cu -l ttys0 -S38400 for a
Linux-based console, and then press Enter to display the L1 prompt. If the console
uses another operating system, start a terminal emulation program as instructed in
the console's user documentation.
CONSOLE
2
XIO
L1 PORT
1

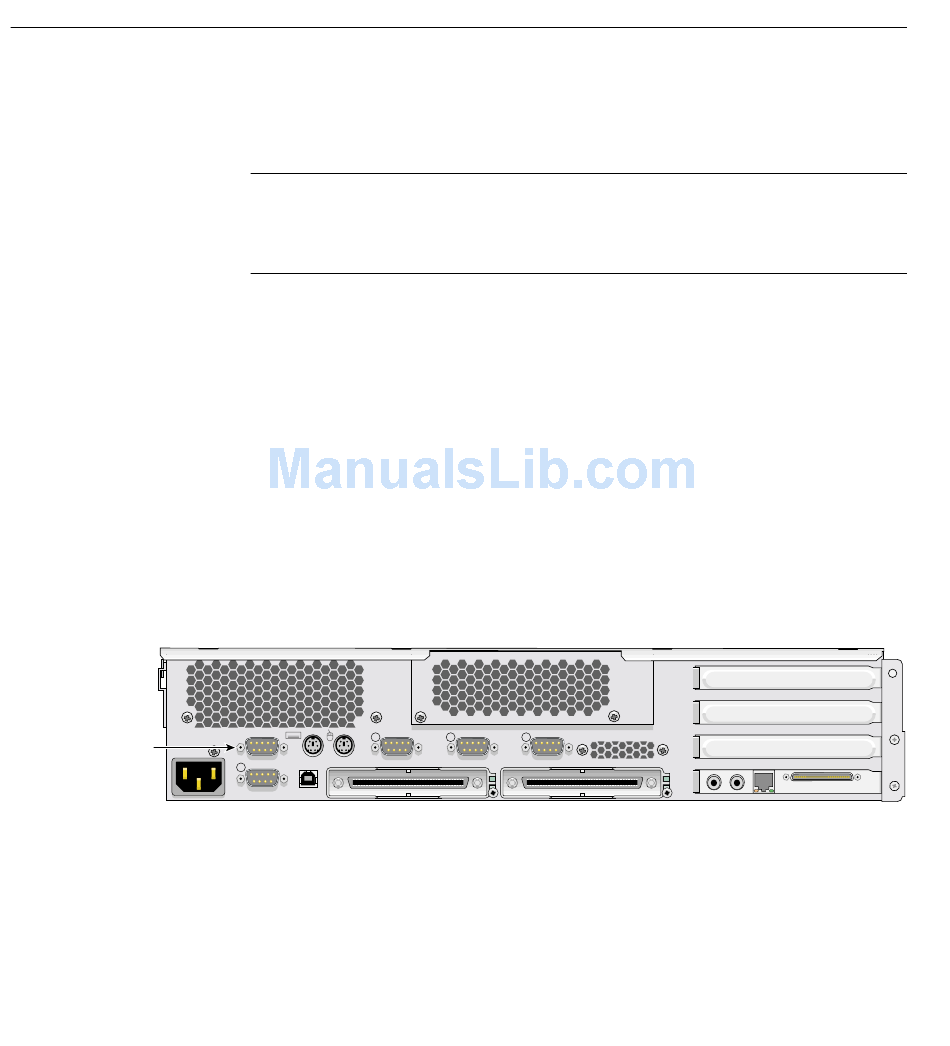

Figure 1-30 Location of the Console Port
3 4
NUMALINK
PCI 4
PCI 3
PCI 2
PCI 1
