PCI and PCI-X Cards

CONSOLE
L1 PORT
1
007-4566-001
• Only qualified service personnel should replace the soldered lithium battery (or
batteries) in the SGI Origin 350 server system. Please see the "Lithium Battery
Statement" on page 242 for more information.
• Use only the proper type of power supply cord set (provided with the system) for
this unit.
Your system module and various optional modules in your system support PCI and
PCI-X cards. The following instructions, which describe how to install and remove a PCI
or PCI-X card from an Origin 350 server system base compute module, can be used to
install and remove PCI and PCI-X cards from the expansion compute module and a
memory and PCI expansion (MPX) module. Figure 6-1 shows the location of the PCI and
PCI-X card slots in the base compute module.
For an updated list of supported PCI and PCI-X cards, see SGI Supportfolio at
http://support.sgi.com.
This section describes the following:
• "Rules for Card Installation and Removal" on page 158
• "Installing a Card" on page 158
• "Removing a Card" on page 167
2 3
XIO NUMALINK

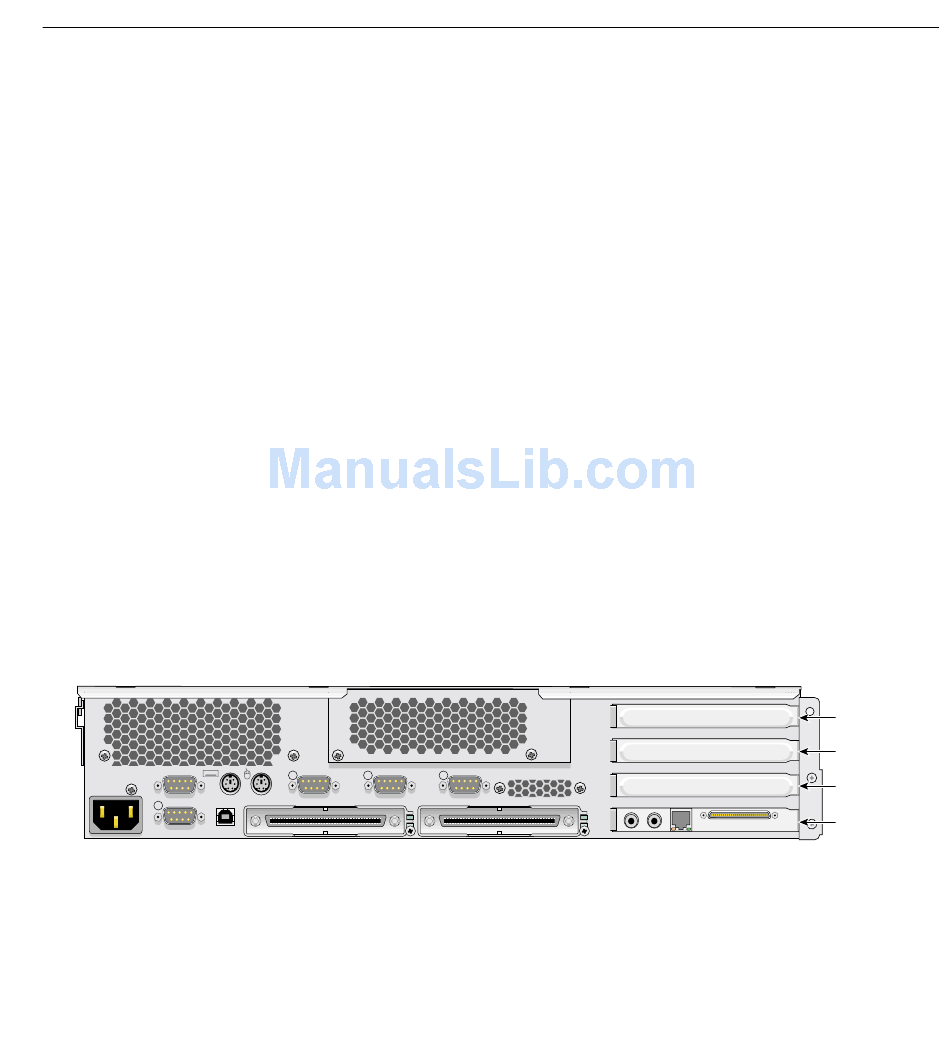

Figure 6-1 PCI and PCI-X Card Slots in the Rear Panel of the Base Compute Module
PCI 4
PCI 3
4
PCI 2
PCI 1
PCI and PCI-X Cards
PCI/PCI-X slots:
Bus 2, slot 2
Bus 2, slot 1
Bus 1, slot 2
Bus 1, slot 1
(with IO9)
