3.5 Loading Media

Both roll media and sheet media can be used with the FC7000. Load the media
according to the instructions given for each type.

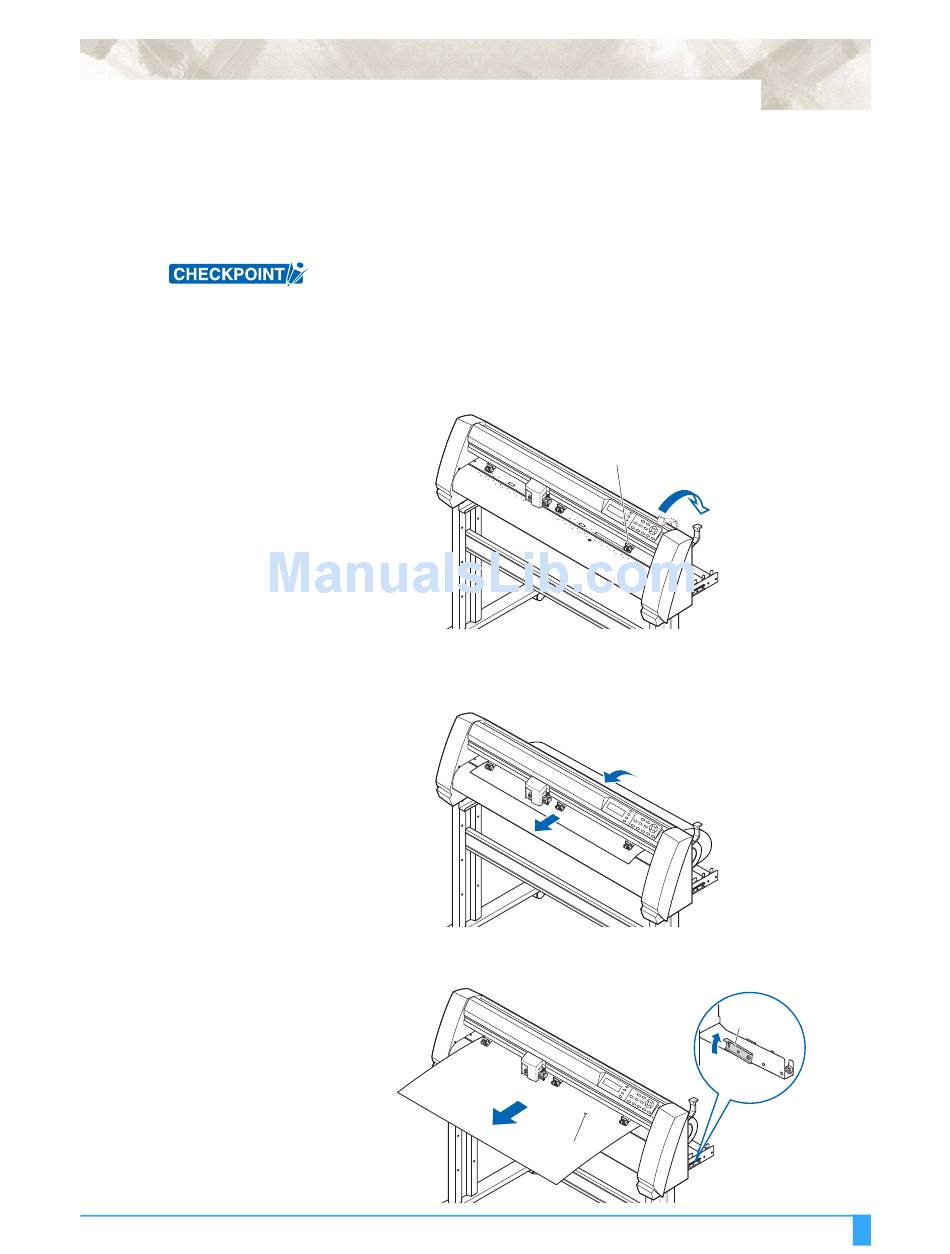

Loading Roll Media (Rear Loading)

1
2
3
The FC7000-100/130 model with three pinch rollers is used for the explanations
in this section. The FC7000-160 model has four pinch rollers, whereas the
FC7000-75 model has only two pinch rollers.
Lower the media set lever to raise the pinch rollers.
Place the media roll on the roll media stocker. Load the media in the plotter as
shown. Pass the leading edge o from the back of the plotter so it emerges from
the front.
Press the media lock to engage it, and then pull the leading edge out of the
front of the plotter so that it completely covers the media sensor.
Pinch roller
Media sensor
P r e p a ri n g t o C u t : L o ad i n g M e d i a
3 - 9
Media lock
