Loading Media (Paper)

Both roll media and sheet media can be used with the CE6000-120AP. Load the media according to the
instructions given for each type.
Use the grit roller on the right side of the media (looking from the front) as a guide when setting it in the media
sensor. Afterwards, adjust the push roller so that it's lined up with the side of the media.
P.2-7 Setting Roll Media
P.2-14 Loading Sheet Media
CAUTION
Notes when using roll media
Make sure to reduce the maximum feed rate if there is any trouble with paper feed not using the basket.
Take all cut/plotted paper out of the basket; paper left in the basket may cause deviations and affect performance for subsequent jobs.

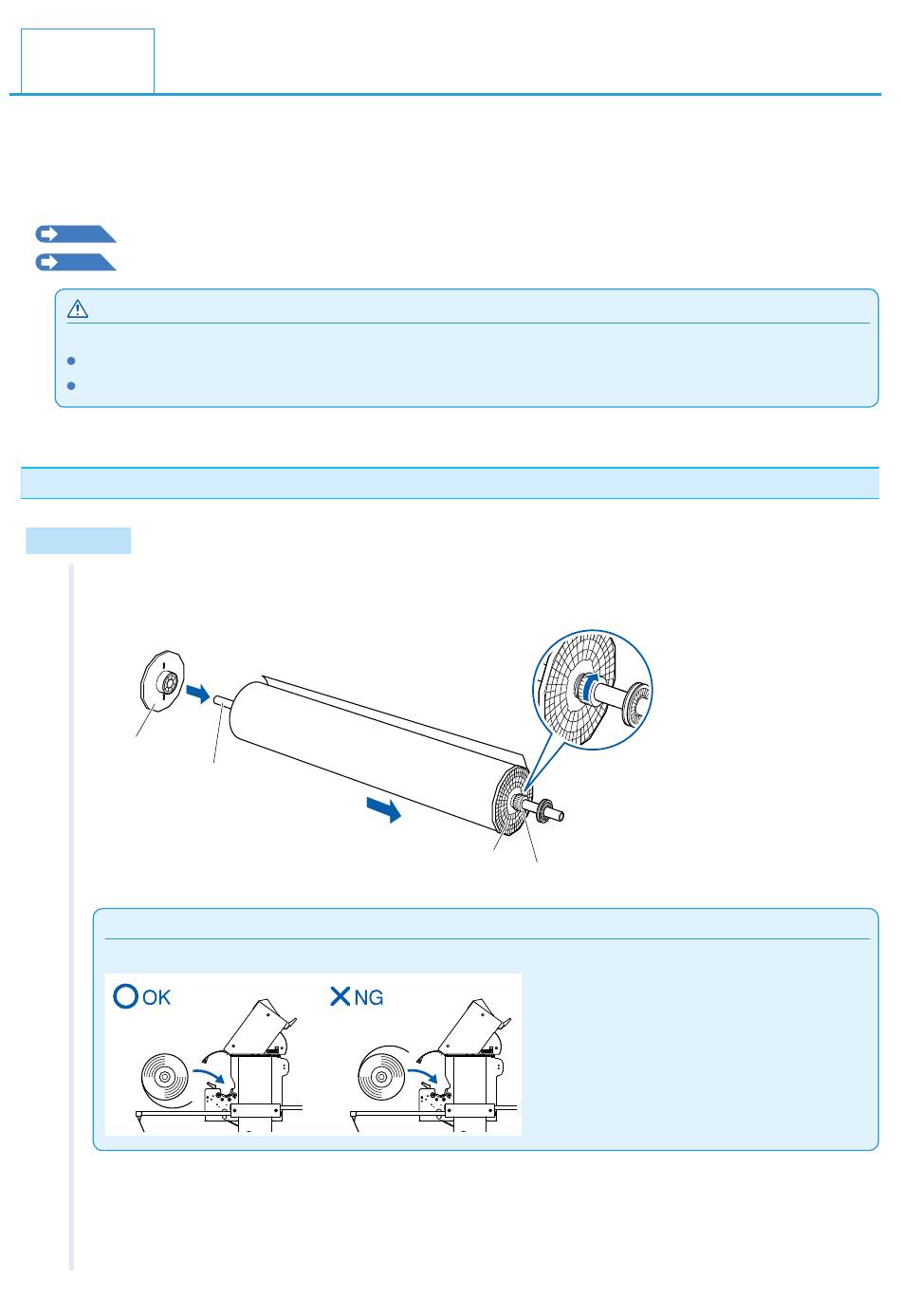

Loading Roll Media

Operation
1
Set the media flange and paper to the stock shaft and insert
in the direction of the paper.
Media flange
Stock shaft
Supplement
When installing, place the paper roll as follows:
Media flange
Flange screw
