5.5 Moving the Origin Point

This function allows you to move the origin point to any desired position.
S
1
2

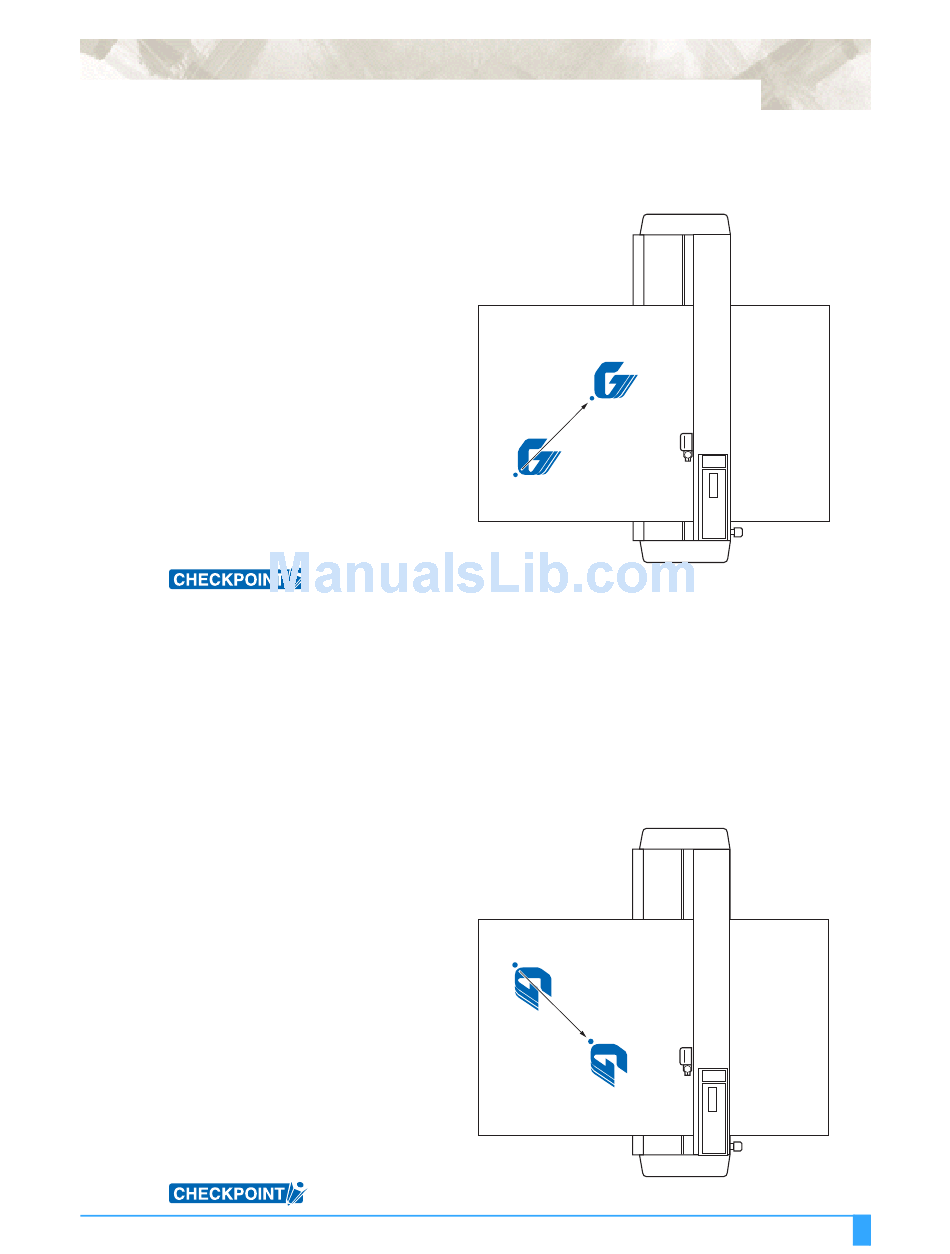

When the origin is moved after the coordinate axes were rotated

Moving the origin after the coordinate axes were rotated gives the following
results.
<When a cut sheet is loaded in the rear loading model>
For the front loading model, rotate the above figure 180 degrees.
P
ETTING ROCEDURE
With the plotter in Ready status, use the POSITION keys to move the pen car-
riage to the new origin point.
Press the ORIGIN key. The beeper sounds, the LCD displays the "NEW
ORIGIN POINT SET" message for several seconds, and the new origin point is
set.
<When a cut sheet is loaded in the rear loading model>
For the front loading model, rotate the above figure 180 degrees.
B A S I C F U N C T I O NS A ND O P E R A T I O NS : M o v i n g t h e O r i g i n P o i n t
New origin point
Original origin point
Original origin point
New origin point
5-5
