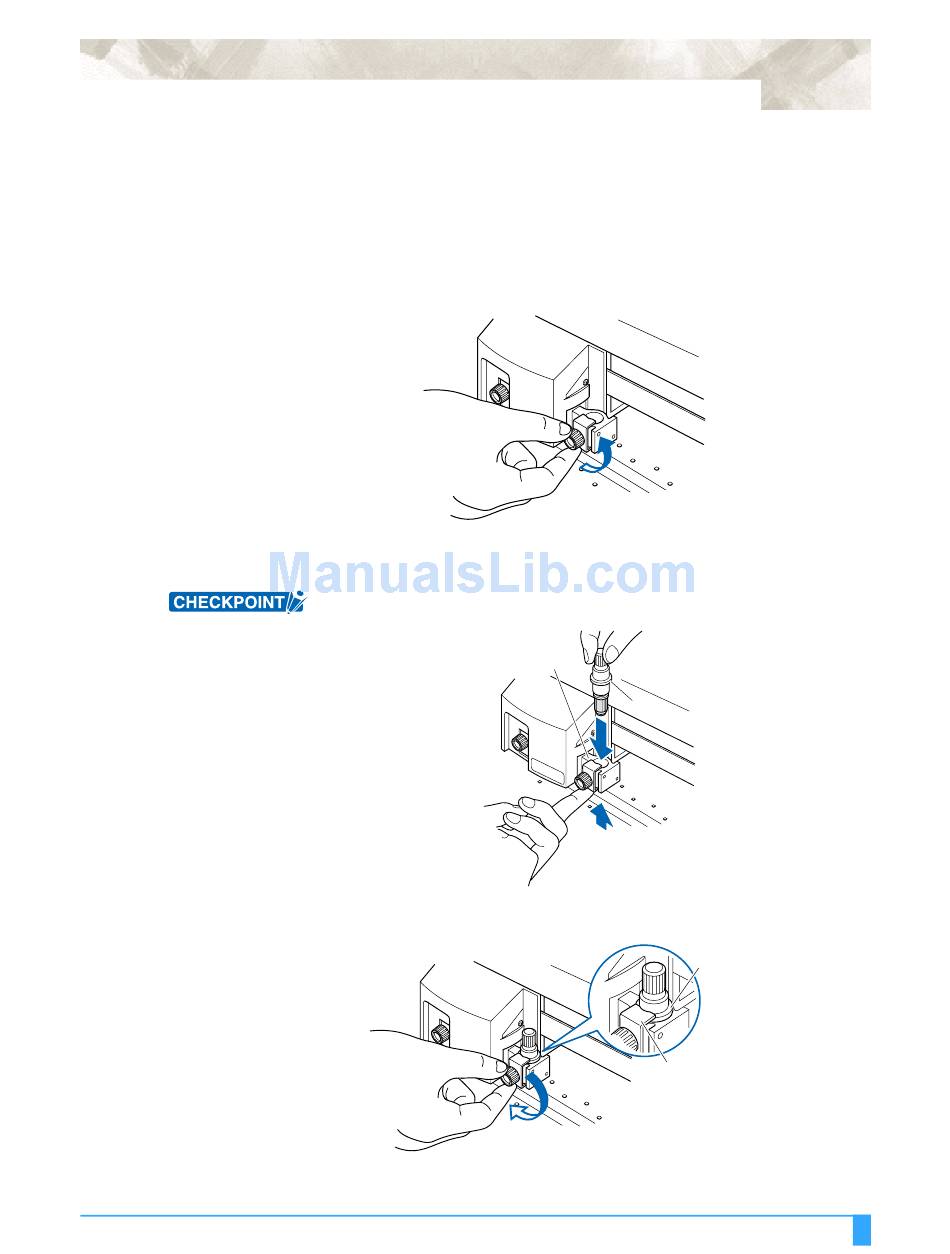

1.5 Attaching a Cutter Pen

When mounting the cutter pen in the pen holder, push the pen all the way into the
holder until its flange contacts the upper part of the holder and then tighten the
screw firmly. To prevent injury, avoid touching the pen immediately after the cutting
plotter is turned on or whenever the pen is moving.
1
2
3
Loosen the pen holder screw.
While pushing the pen holder in the upward direction, push the pen all the way
into the holder until its flange contacts the upper part of the holder.
When pushing the pen holder with your fingers, the blade tip may be
protruding. Take care not to cut your fingers.
Upper part of pen holder
Make sure that the pen bracket is engaged on the pen's flange, and then
tighten the screw.
Flange
Flange
Bracket to hold pen
O u t o f t h e B o x : A t t ac h i n g a C u tt e r P e n
1 - 11
