7.2 Pouncing Tool

Pouncing is a method used to create a punched outline on media.

Attaching the Pouncing Tool

1
2
3
O P T I O N S : P o u n c i n g T o o l

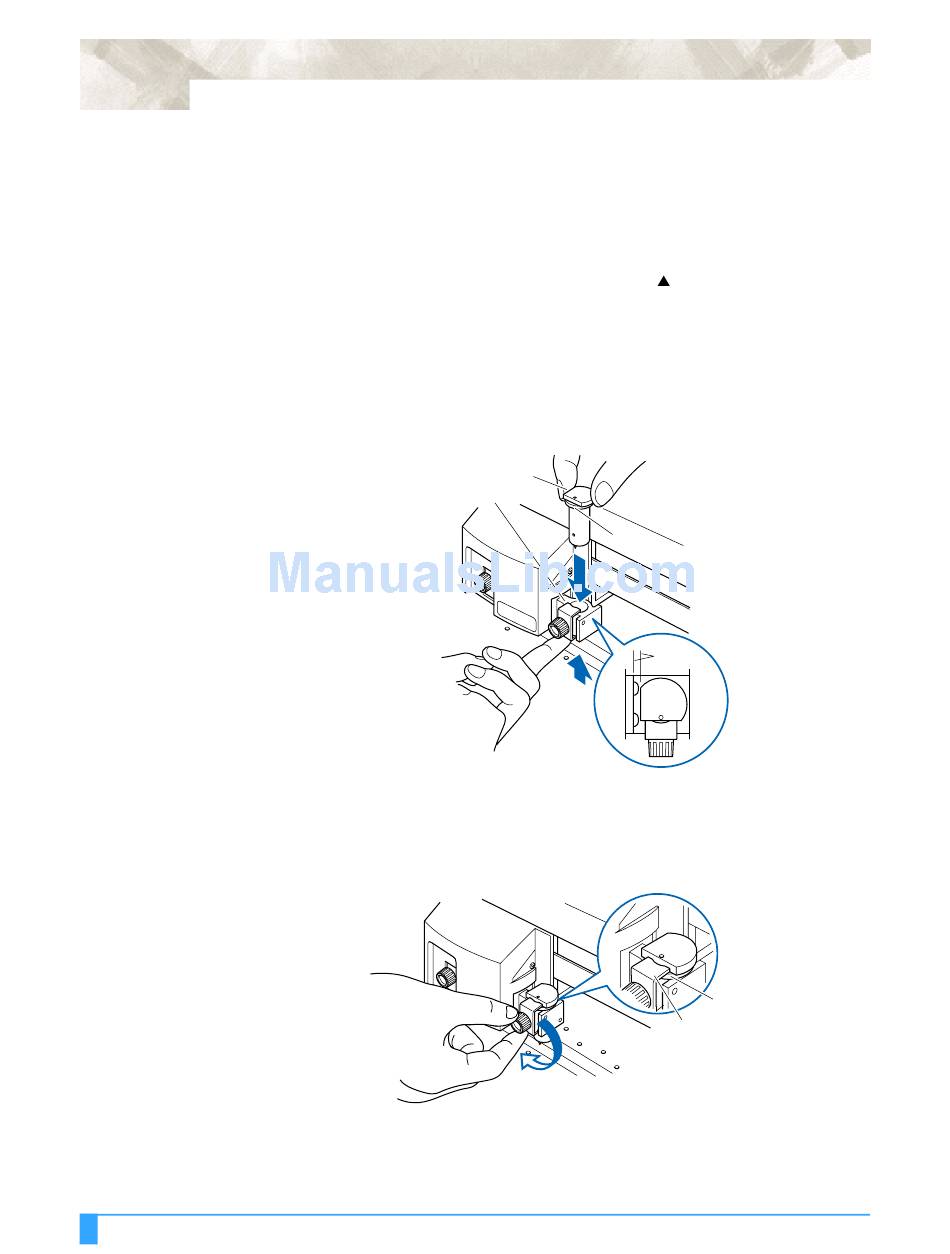

Loosen the pen holder screw, and check that the [ ] mark for 2-pen and regis-
tration mark recognition use is facing upward. (See Section 1.5, "Attaching a
Cutter Pen").
While holding the pen holder upward, push the pouncing tool all the way into
the holder until the flange contacts the upper part of the pen holder. The flat
edge must be parallel to the pen holder.
Note: Use the same procedure to attach the pouncing tool to the pen
holder of the 2-pen model.
Flat edge
Upper part of pen holder
Holder for auto registration mark sensor
Make sure that the pen bracket is mounted firmly over the flange, and then
tighten the screw.
Note: Use the same procedure to attach the pouncing tool to the pen
holder of the 2-pen model.
Flange
Parallel
Flange
Pen bracket
