Attaching a Plotting Pen to the Pen Station

Follow the procedure below to replace the cross-cutter unit that is used to cut the
media after the plotting or cutting operation has been completed.
1
2
3

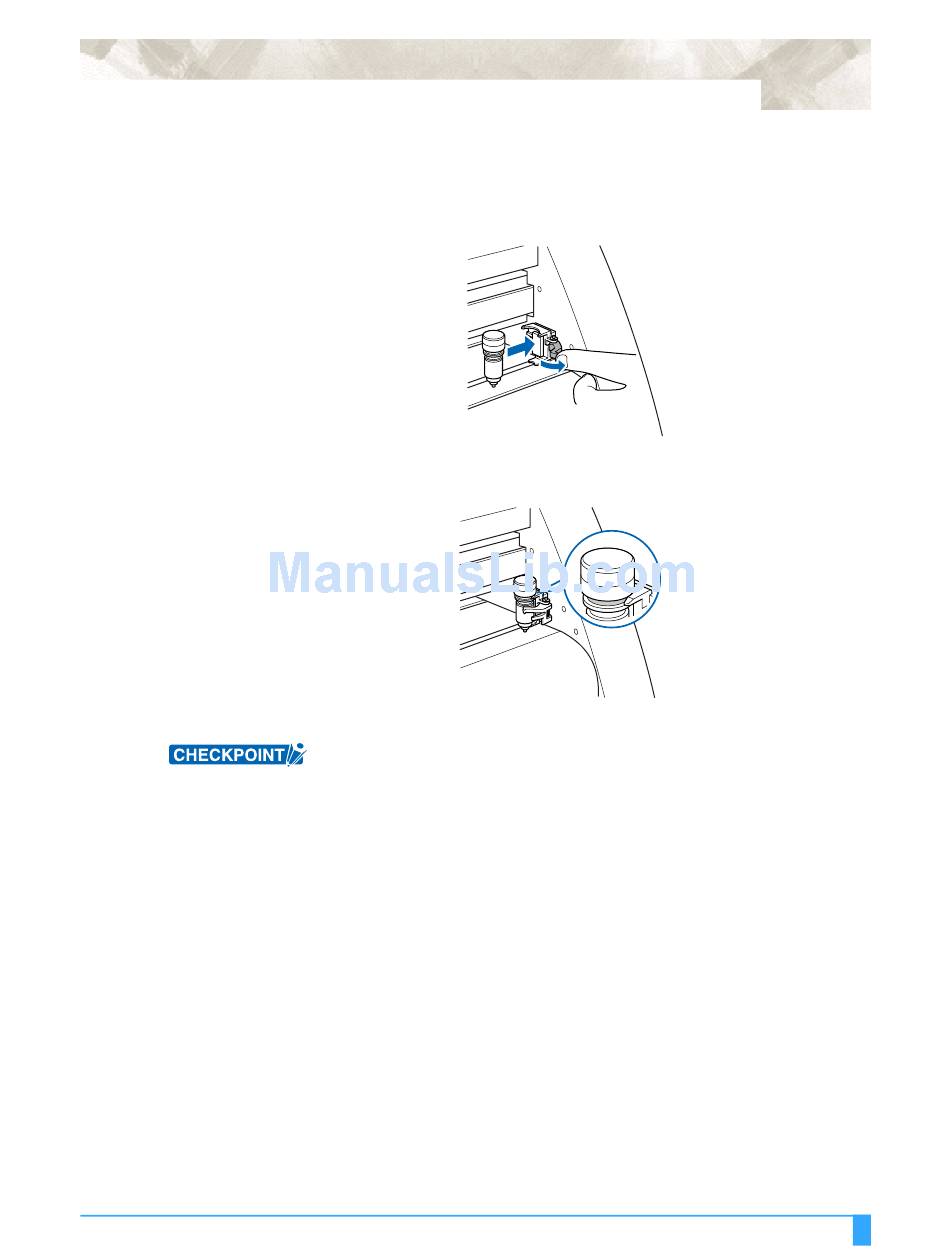

Open the pen-hold mechanism on the pen station, and then attach a pen.
Make sure that the bracket of the pen station is engaged in the upper groove of
the pen.
Close the pen-hold mechanism on the pen station to hold the pen in place.
• Do not leave a pen attached to the pen station for a long period of time, as the
pen tip will dry up and make it unusable.
• To store the pen, remove it from the pen station and replace its protective cap.
O u t o f t h e B o x : A t t ac h i n g a C u tt e r P e n
1 - 13
