6.8 Setting the Mirror Mode

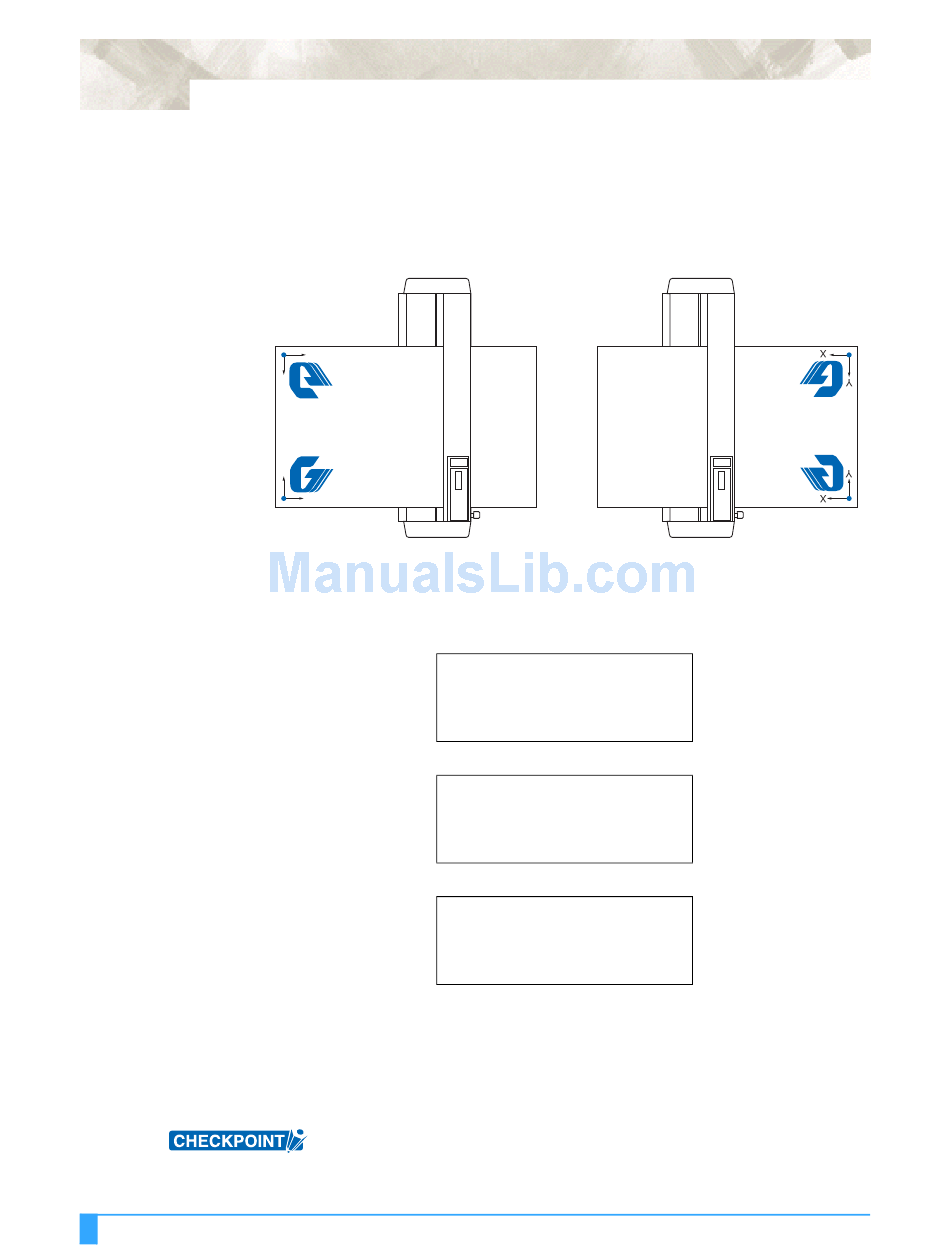

This function is used to cut a reversed image of the original data. In MIRROR
mode, the origin point and coordinate data are reversed as shown in the figure
below
S
1
2
3
4
5
6
7
A DV A N C E D F U N C T I O NS AN D O P E R AT I O NS : S et t i n g t h e M i rr o r M o d e
<Rear Loading>
X
Y
When ON was selected
for MIRROR
When OFF was selected
for MIRROR
Y
X
P
ETTING ROCEDURE
Press the MENU key.
Press the NEXT key until the following menu appears.
Press the F3 key (FUNCTION 1). The following menu appears.
Press the F3 key (MIRROR). The following menu appears.
The asterisk "*" indicates the currently selected setting. Press the F3 key (ON)
to enable the MIRROR mode. To disable the MIRROR mode, press the F4
(OFF) key.
Press the ENTER key to register your setting.
Press the MENU key to return the plotter to Ready status.
This setting is retained in the plotter's internal memory even when the power is
turned off.
<Front Loading>
INTERFACE>
AREA PARAMETERS>
FUNCTION 1>
FUNCTION 2>
PREF. LINE TYPE>
ROTATE>
MIRROR>
SCALE>
MIRROR
ON
OFF*
When OFF was selected
for MIRROR
When ON was selected
for MIRROR
