6.13 Setting the Registration Mark Reading Area

This function allows you to change the start position for scanning by simply
specifying the distance between registration marks. Since the plotter will not
perform scanning in areas where there are clearly no registration marks, the mark-
sensing time is reduced. This function also prevents incorrect recognition of dirt or
other foreign matter on the media as a registration mark. Up to three marks can be
registered.
CAUTION: If you specify a value longer than the media, the media can not be detected.
1
2
3
A DV A N C E D F U N C T I O NS AN D O P E R A T I O NS : S et t i n g t h e R e g i st r at i o n M ar k R ea d i n g A r e a
• If 0 mm is specified for the spacing, the plotter will not skip reading between
marks. It will continue searching until the next registration mark is found.
• The Y-axis value is ignored for 2-point reading.
• Specify a distance that is approximately 10 mm shorter than the distance
between registration marks in the media feed direction for the X axis, and the
distance between registration marks in the direction in which the pen carriage
moves for the Y axis(see the diagrams below).

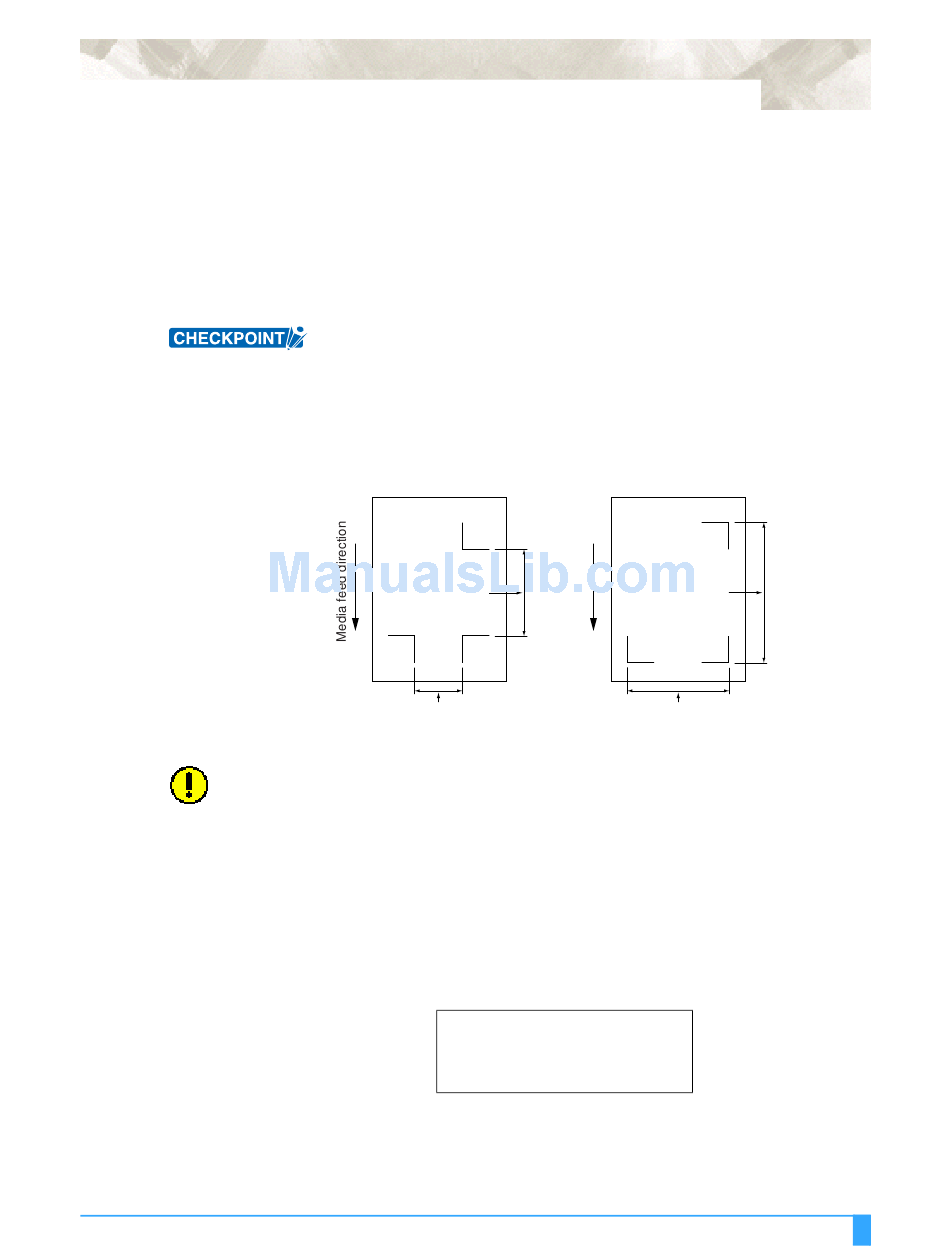

Registration mark pattern 1
Use this distance
as a reference
when specifying the
registration mark
reading area for the
X axis
Use this distance as a reference
when specifying the registration
mark reading area for the Y axis
S P
ETTING ROCEDURE
Press the AXIS/R.M.S. key.
If the registration mark mode has been enabled, the following menu appears.
Note: If the registration mark mode has not been set, the axis alignment
menu screen appears. If you wish to use the registration mark functions,
press the NEXT key to cancel the operation and then refer to Section 6.12,
"Setting the Registration Mark Mode" for details on how to make the
registration mark mode settings.
Press the F1 key (AUTO REG. MARK). The following menu appears.
Registration mark pattern 2
Use this distance
as a reference
when specifying the
registration mark
reading area for the
X axis
Use this distance as a reference
when specifying the registration
mark reading area for the Y axis
AUTO REG. MARK>
SKIP>
AUTO>
MANUAL>
