GRAPHTEC FC7000 Series User Manual page 120

6-40
7
8
9
10 Press the F3 key (PARAMETER SET). The following menu appears.
11 Measure the distance between the first cross mark and the second cross mark,
12 Press the ENTER key to register your setting.
13 Press the NEXT key to return the plotter to Ready status.
A DV A N C E D F U N C T I O NS AN D O P E R AT I O NS : S e t ti n g th e A X I S O F F S E T A D JU S T M E N T ( M e t h o d 2 )
Press the F4 key (METHOD 2). The following menu appears.
SENSOR OFFSET ADJUST
Use the POSITION keys to move the pen carriage to the position where you
wish to plot the cross mark, and then press the F4 key (SCAN).
The plotter plots the first cross mark. The following menu appears.
PRESS ENTER KEY!
Mount the pen for which pen condition 1 was specified in the pen holder at the
recognized position, and then press the ENTER key.

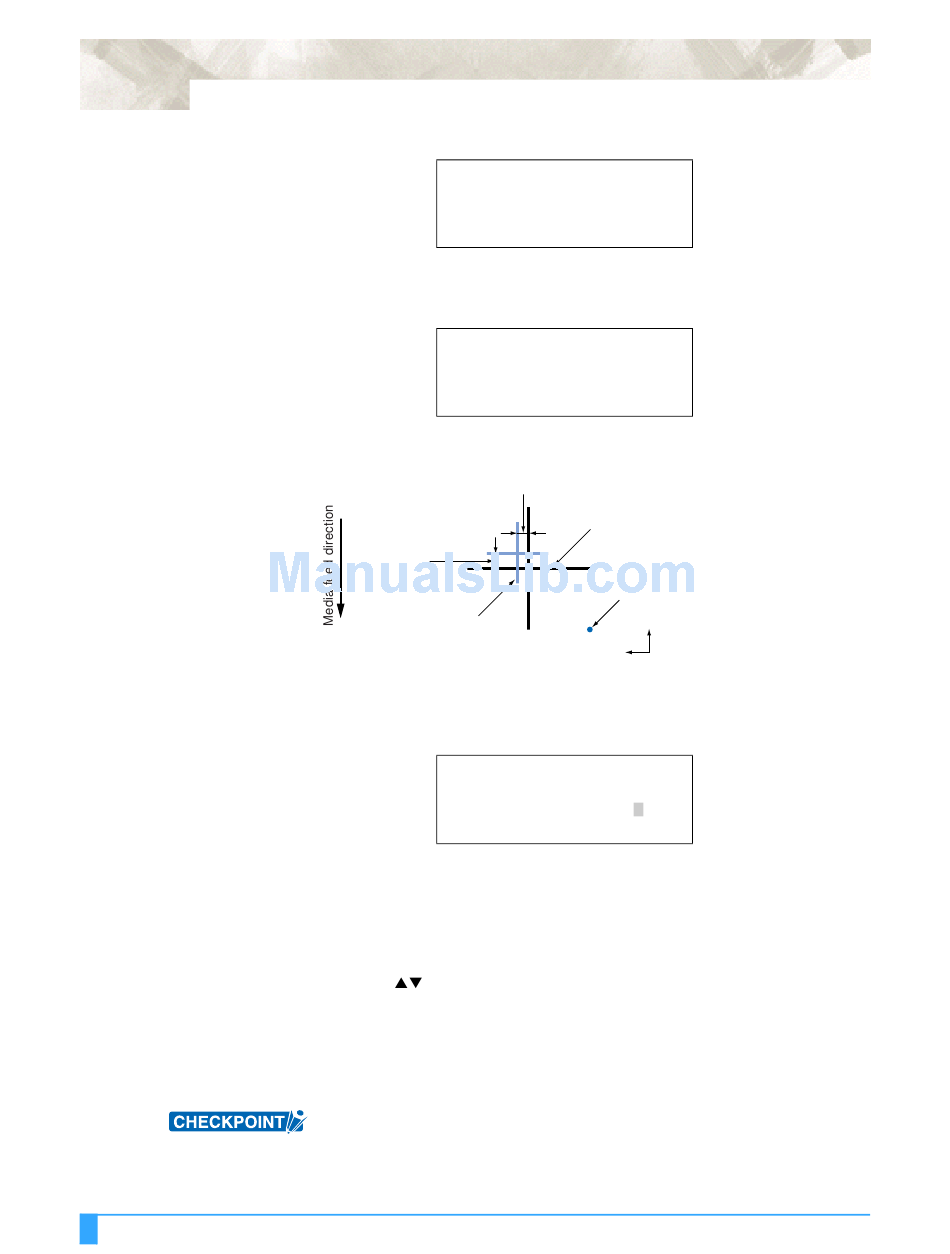

Value for Y-axis distance correction
Value for
X-axis distance
correction
The second cross mark
plotted after the first cross
mark was read
After the cross mark is read, use the pen for which Pen Condition 1 was
specified to draw a second cross mark.
and then input the corrective values.
The corrective values that need to be input depend on the actual shift in
position between the first and second cross marks. In the above figure, for
example, there is a shift in both the -X and -Y direction, and so X = -**.* mm
and Y = **.* mm need to be input. Press the F3 or F4 key to select the X or Y
axis. Use the ( ) POSITION keys to increase or decrease the value. Press
the F2 key (+/-) to toggle the polarity. (If there is no shift, simply press the
ENTER key).
• This setting is retained in the plotter's internal memory even when the power is
turned off.
• Either cutter pens or plotting pens can be used for adjustment.
PARAMETER SET>
SCAN>
CHANGE PEN
The first cross mark plotted
The pen position at the start of plotting
X
Y
SENSOR OFFSET ADJUST
X= 0. 0 mm
X= 0.0 mm
