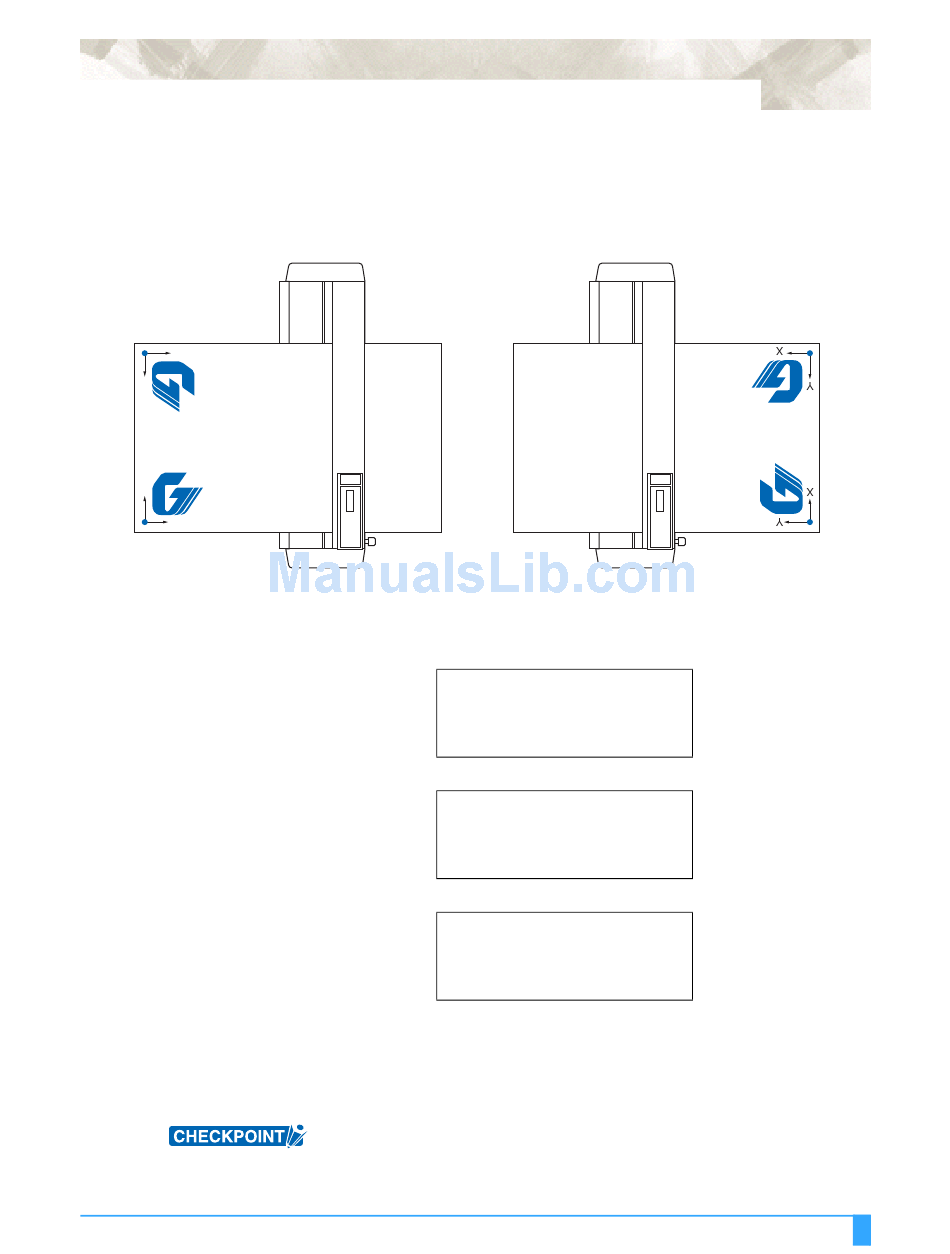

6.7 Rotating the Coordinate Axes
This function is used to move the origin and rotate the coordinate axes by 90° as
shown in the figure below.
(Rear Loading)
Y
X
Coordinates when ON
was selected for ROTATE
Coordinates when OFF was
selected for ROTATE
Y
X
S
1
2
3
4
5
6
7
O
ETTING
PERATION
Press the MENU key.
Press the NEXT key until the following menu appears.
Press the F3 key (FUNCTION 1). The following menu appears.
Press the F2 key (ROTATE). The following menu appears.
The asterisk "*" indicates the currently selected setting. Press the F3 key (ON)
to enable rotation. To disable rotation, press the F4 key (OFF).
Press the ENTER key to register your setting.
Press the MENU key to return the plotter to Ready status.
This setting is retained in the plotter's internal memory even when the power is
turned off.
A DV A N C E D F U N C T I O NS AN D O P E R AT I O NS : R o t a t i n g t h e C o o r d i n a te A x e s
(Front Loading)
Coordinates when OFF
was selected for ROTATE
Coordinates when ON
was selected for ROTATE
INTERFACE>
AREA PARAMETERS>
FUNCTION 1>
FUNCTION 2>
PREF. LINE TYPE>
ROTATE>
MIRROR>
SCALE>
ROTATE
ON
OFF*
6-13
