Rear View - GRAPHTEC FC7000 Series User Manual

1 - 4

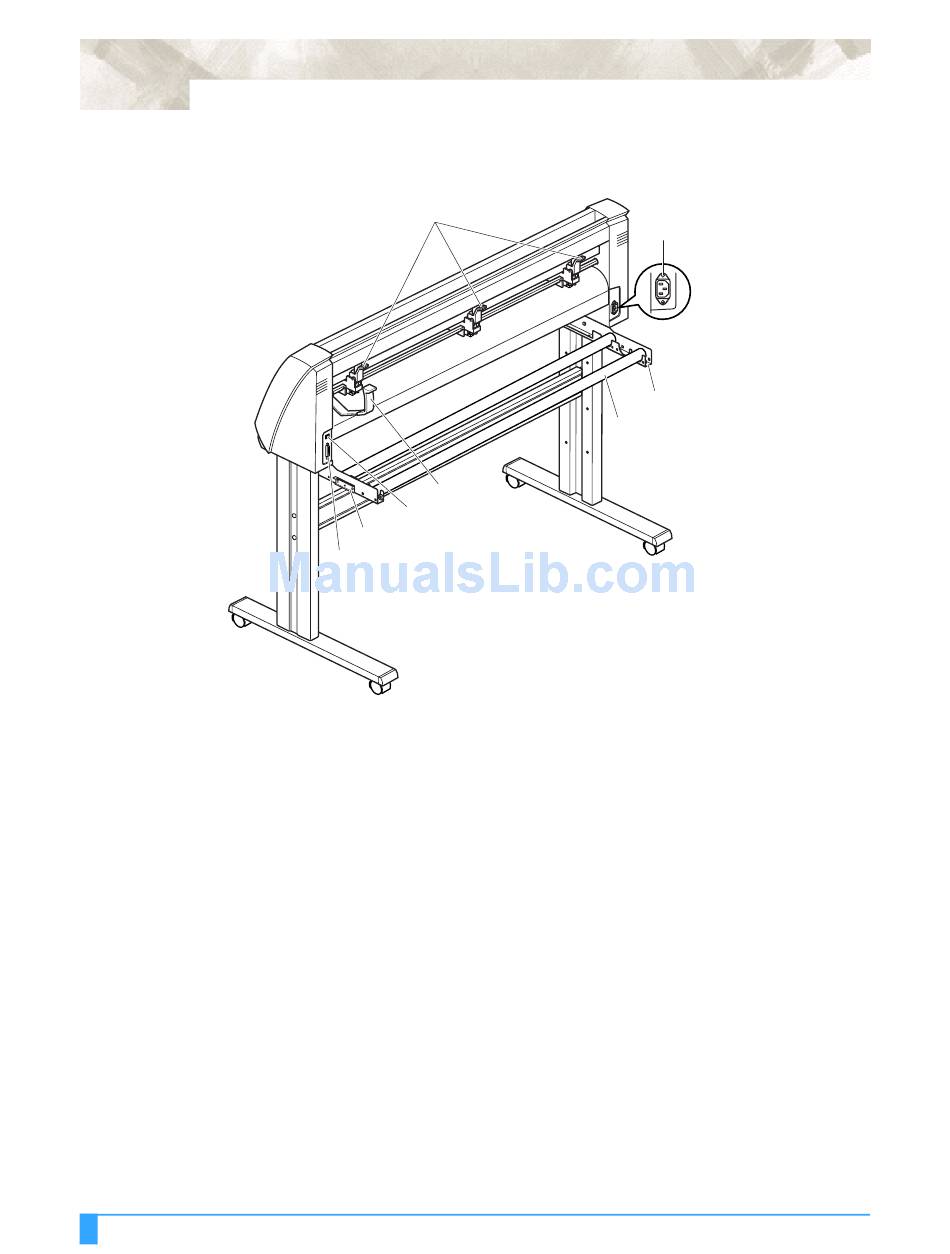

Rear View

Media set lever: ...........Used to raise or lower the pinch rollers during the loading
Pinch roller hold-down force switching lever:
AC line inlet: ................Inlet where the power cord is connected.
Media stocker: .............Used to carry roll media and ensure its proper rotation.
Stock rollers: ...............A media roll is placed on these rollers.
Media lock: ..................Used to prevent the stock rollers from rotating when the
USB interface connector:
Serial interface connector:
O u t o f t h e B o x : N o m e n c l a t u r e
Pinch roller hold-down force switching lever
Media set lever
USB interface connector
Media lock
RS-232C interface connector
or unloading of media.
Used to switch between the two pinch roller forces (strong
and weak).
media roll has been placed on top of them. The media
lock ensures that the media is pulled straight out from the
roll.
Used to connect the plotter to the computer with a USB
interface cable.
Used to connect the plotter to the computer with an RS-
232 serial interface cable.
AC line inlet
Media stocker
Stock rollers
