edge of the media.

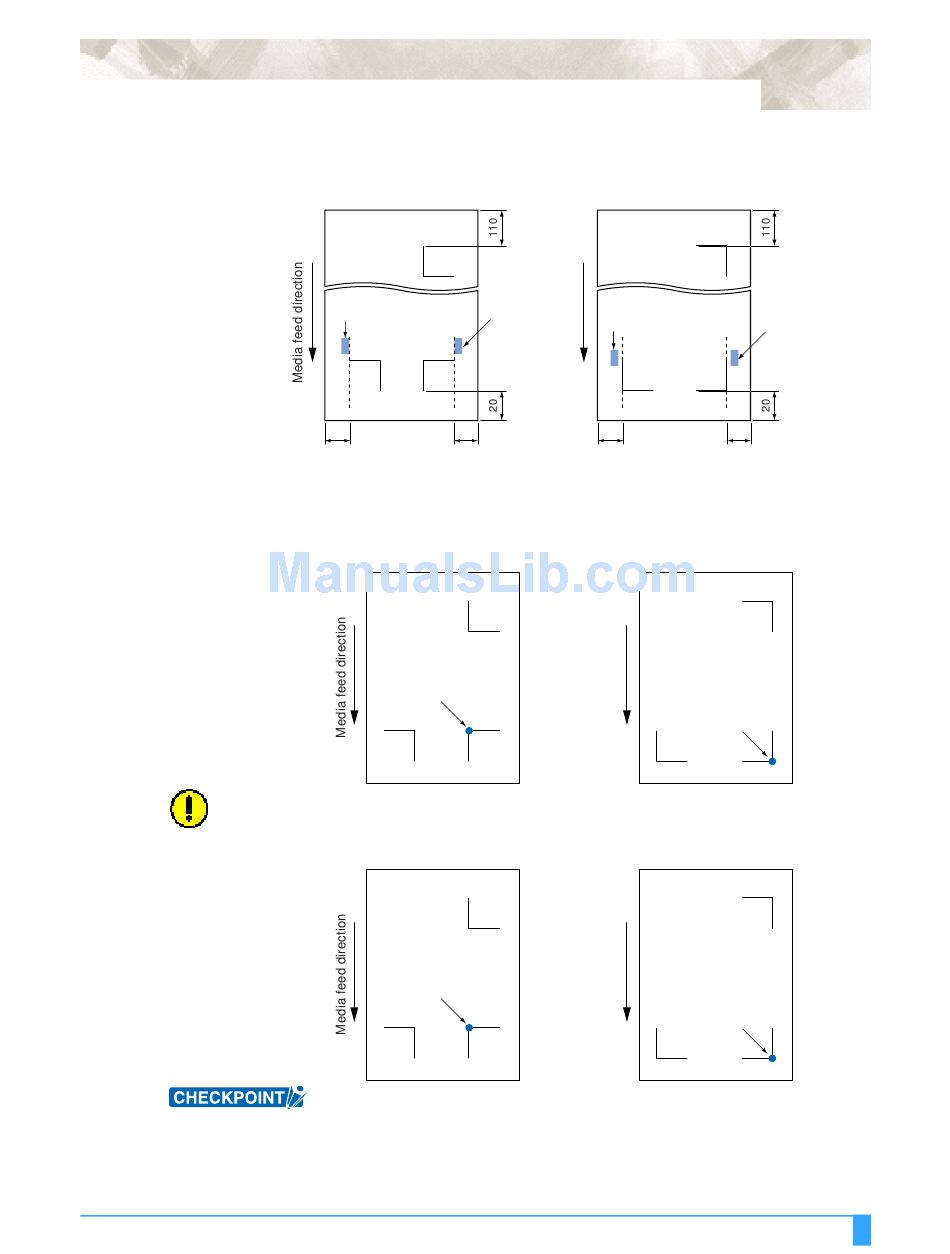

The position of the origin point
After the registration marks are recognized, the drawing origin point is positioned
as shown below.
CAUTION: The drawing origin point specified by the application software must be moved if
A D V A N CE D F U NC T I O N S A N D O P E RA T I O N S : Au t o R e g i s t ra t i o n M a r k Re a d i n g F u n c t i o n
With roll media, the registration marks must be at least 110 mm from the back
Registration mark pattern 1
Left pinch roller
22
Registration mark pattern 1
Origin point
required so that it matches the origin point of the registration marks.
Registration mark pattern 1
Origin point
You can measure the offset between the axis origin and the registration mark
using one of two methods.
• Read the numeric values (representing the distance from the axis origin to
the first registration mark) on the screen display of the software application.
• Plot the registration mark and then measure the distance from the origin
point.
Registration mark pattern 2
Right pinch
roller
Left pinch roller
15
22
Registration mark pattern 2
Registration mark pattern 2
6-19
Right pinch
roller
15
Origin point
Origin point
