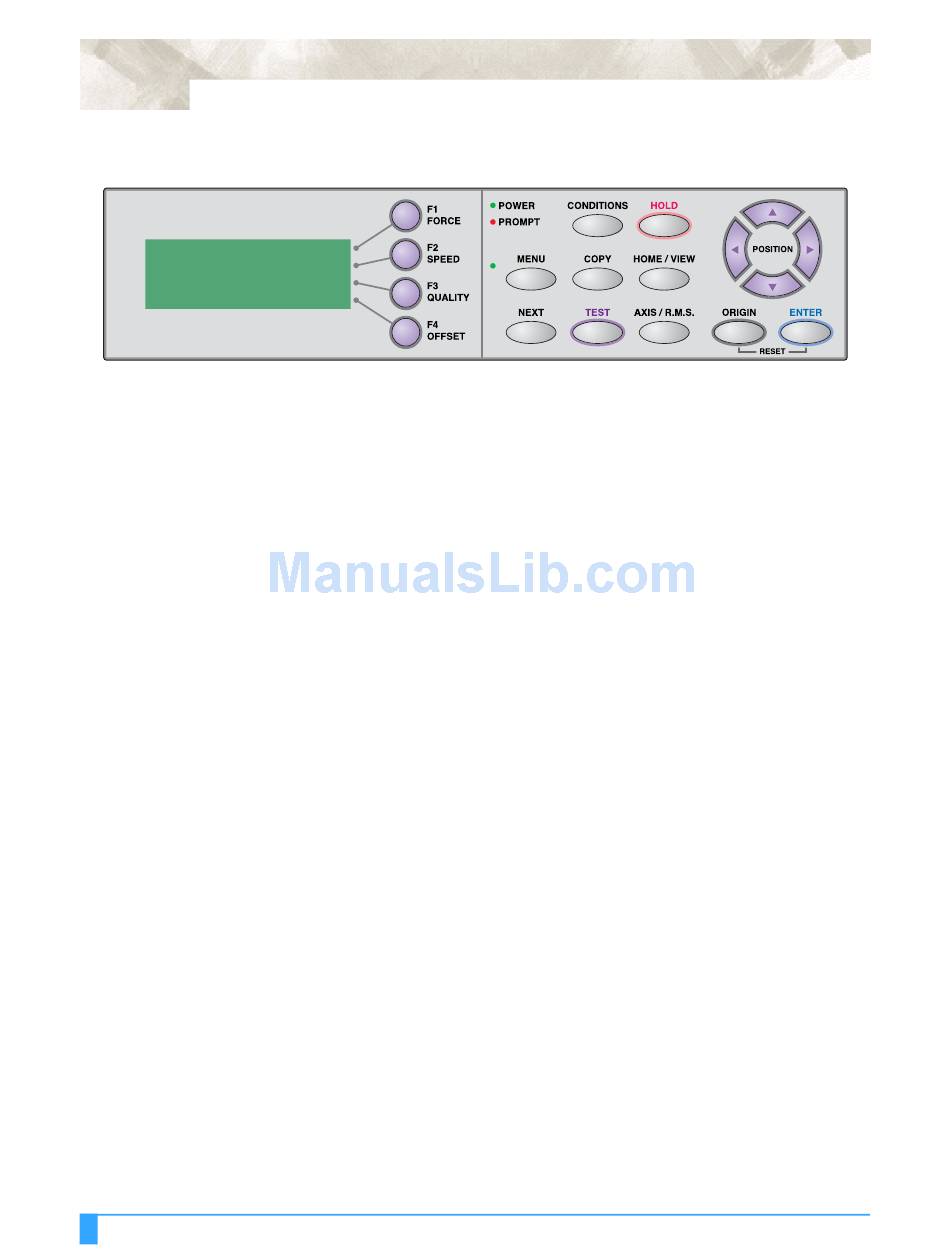

3.1 Control Panel

Indicator Lamps

POWER lamp: .........Remains lit (green) while the plotter is on.
PROMPT lamp: ........Lights red when the cutting data goes beyond the effective

Function Keys

These four keys [F1, F2, F3 and F4] have functions which change as each menu
changes. Depending on the menu being displayed, these keys are used to:
F1 (FORCE) key: .....When the FC7000 is in MENU mode, press the F1 key to
F2 (SPEED) key: .....When the FC7000 is in MENU mode, press the F2 key to
F3 (QUALITY) key: ..When the FC7000 is in MENU mode, press the F3 key to
F4 (OFFSET) key: ....When the FC7000 is in MENU mode, press the F4 key to

Position Keys

POSITION keys .......Depending on the operating status of the FC7000, the
P re p ar i n g t o C u t: C o n t ro l P a n e l
cutting area.
select a function. When the FC7000 is online, press F1 to
select the Condition numbers 1 and 5. After pressing the
CONDITIONS key, use F1 to adjust the cutting/pen FORCE.
select a function. When the FC7000 is online, press F2 to
select the Condition numbers 2 and 6. After pressing the
CONDITIONS key, use F2 to adjust the cutting SPEED.
select a function. When the FC7000 is online, press F3 to
select the Condition numbers 3 and 7. After pressing the
CONDITIONS key, use F3 to adjust the cutting QUALITY.
select a function. When the FC7000 is online, press F4
select the Condition numbers 4 and 8. After pressing the
CONDITIONS key, use F4 to adjust the cutting OFFSET.
POSITION keys have the following functions.
When the FC7000 is in the MENU mode, use the POSITION
keys to change the setting values shown in the various menu
displays. The POSITION keys are also used to move the pen
carriage and the media. If a POSITION key is pressed once,
the pen carriage moves the length of the step specified in
Section 5.9, " Using the MOVE STEP Function ". If the key is
held down, the movement is continuous. To speed up the
movement of the pen carriage, press the NEXT key together
with a POSITION key.
