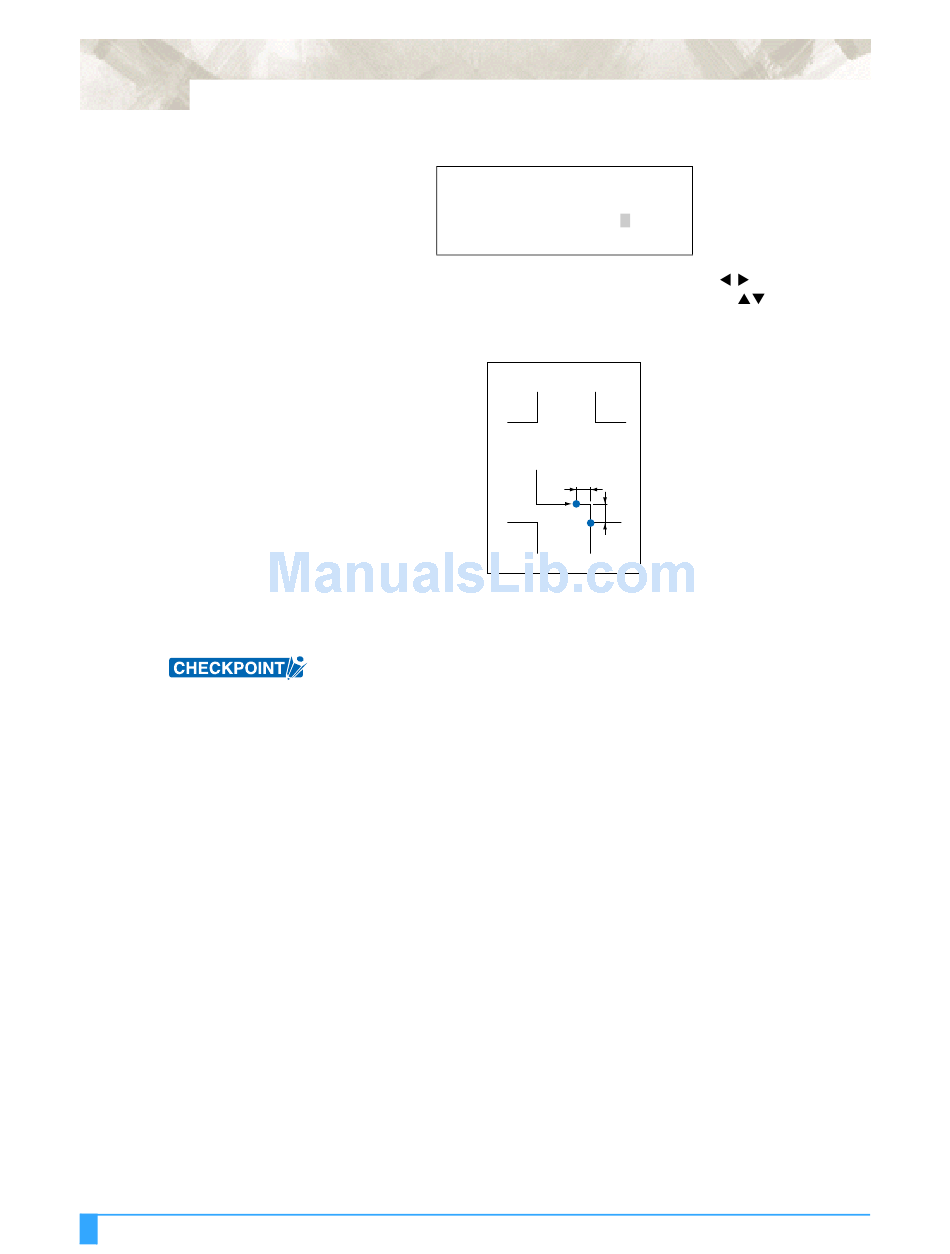

A DV A N C E D F U N C T I O NS AN D O P E R AT I O NS : S et t i n g t h e A X I S O R I G I N O F F S E T
Press the F3 key (AXIS ORIGIN OFFSET). The following menu appears.
Press the F3 or F4 key to select the X or Y axis. Use the (
keys to move the blinking cursor to the left or right, and the (
keys to increase or decrease the value in the range from -200.0 to +200.0
(mm). Press the F2 key (+/-) to toggle the polarity.
Press the ENTER key to register your setting.
Press the NEXT key to return the plotter to Ready status.
This setting is retained in the plotter's internal memory even when the power is
turned off.
AXIS ORIGIN OFFSET
+/- >
X=
00 .0mm
0
X=
000.0mm
The desired
Origin Point
Y
X
) POSITION
) POSITION
