1.3 Assembling the plotter

FC7000-75 (desktop model; stand not provided but is available as an option)

When the FC7000-75 is used without a stand, the media bracket is attached
directly to the plotter.

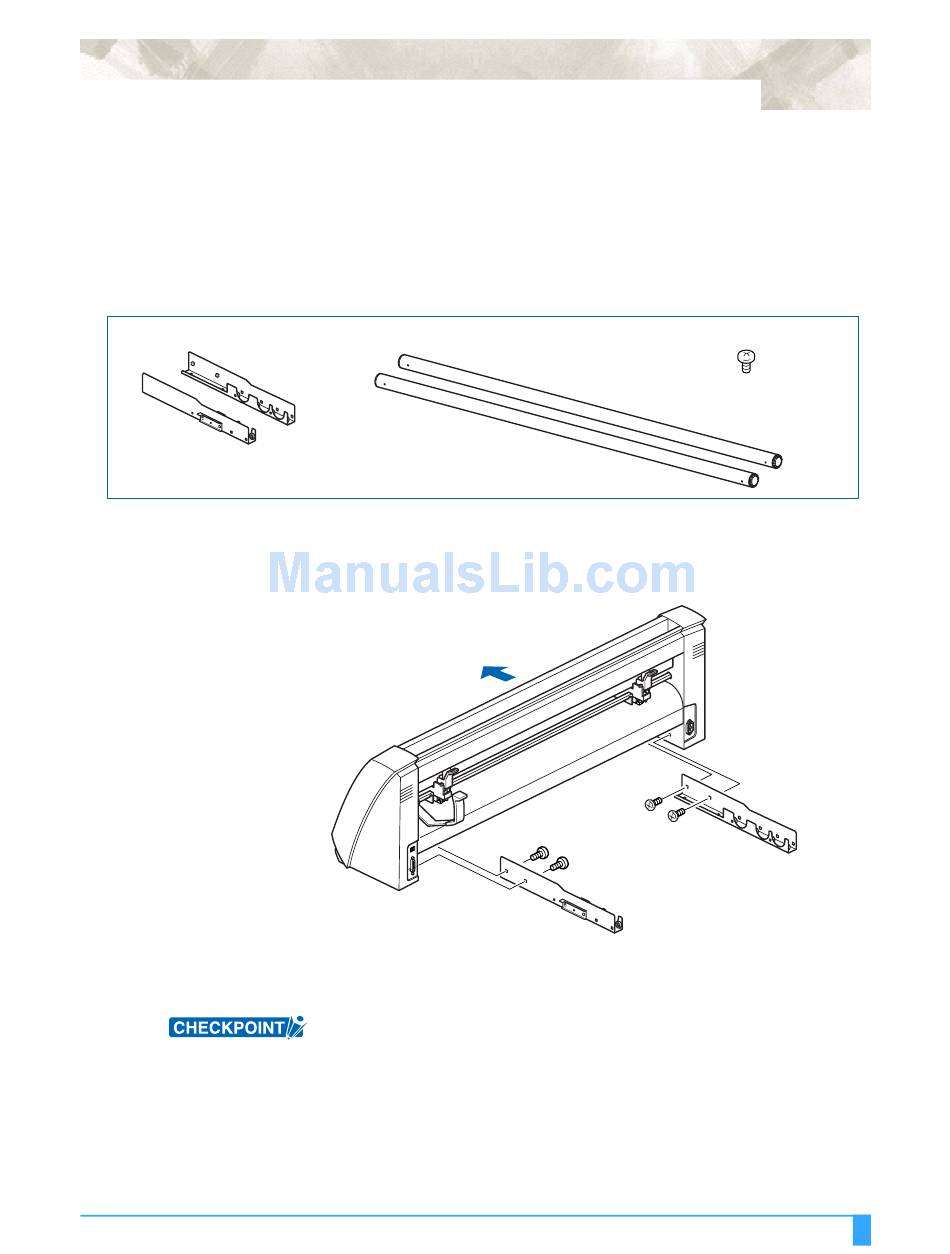

The media bracket is made up of the following parts.
Media stocker x 2
A
1
2
Stock roller x 2
M S
TTACHING THE EDIA
Fasten the media stocker to the left and right inside surfaces of the plotter unit,
using two M4 binding-head screws for each stocker.
Insert an M4 screw in the second hole from the front side of the plotter.
• Check that all of the screws used for fastening have been tightened. The media
may not be fed correctly if even one of the screws is loose.
• When installing the plotter, make sure that there are no objects in its vicinity.
Leave a clear space of at least 300 mm around the plotter.
• When the FC7000-75 is used without a stand, the maximum diameter of the
roll media that can be used is 160 mm.
TOCKERS
Front
Media stocker
O u t o f t h e Bo x: A s s em b l i n g t h e p l o t t er
1 - 5
M4 binding-head screw x 4
Media stocker
