2.3 Replacing the Cutter Blade

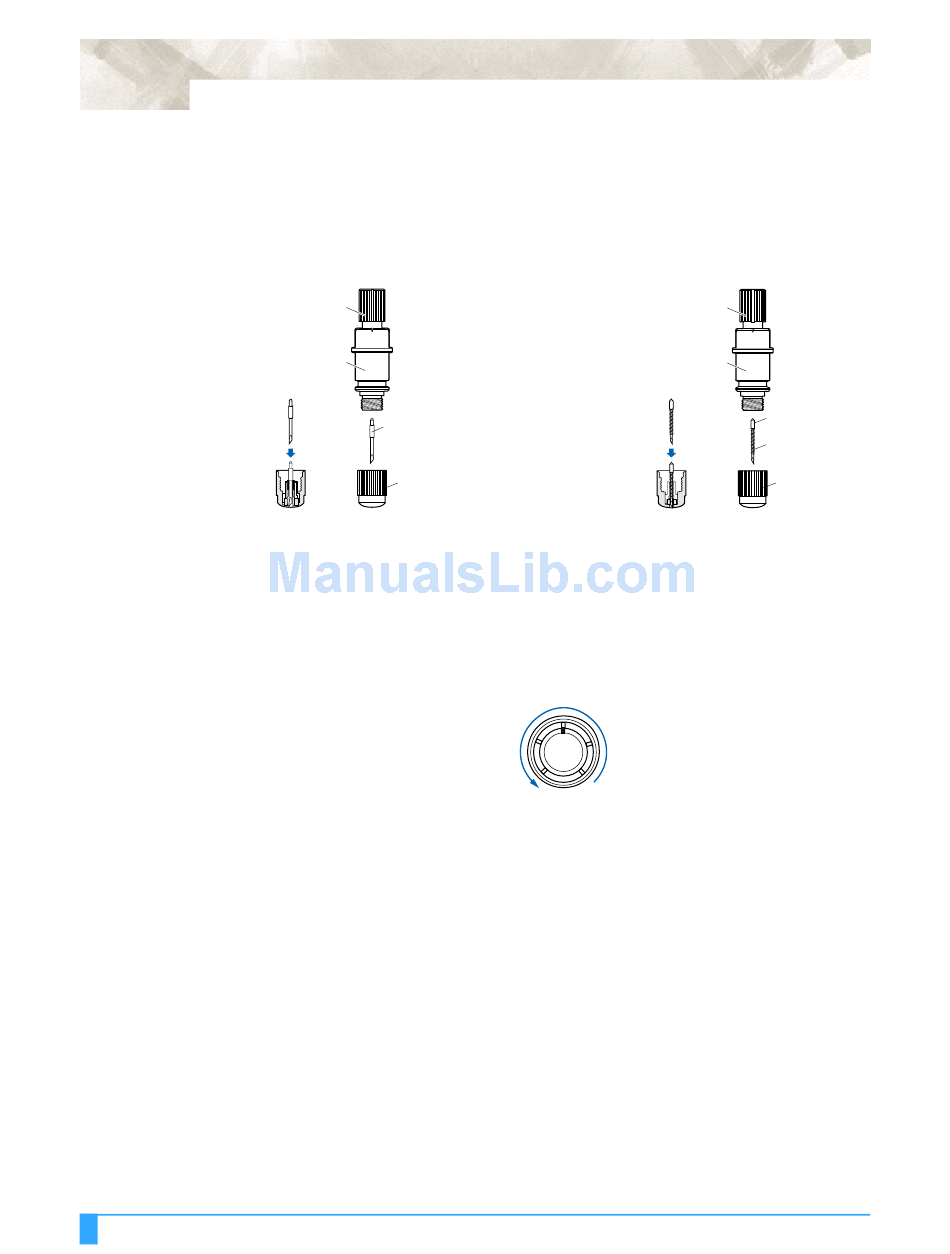

Structure of Cutter Pen

Blade-length adjustment knob
Plunger cap
cross-section
Replacing the Cutter Blade
While referring the above figures, follow the procedure below to replace the cutter
blade.
1
2
3
4
5
C u t t er B l a d e s a n d C u tt e r P e n s : Re p l ac i n g t h e C u tt e r Bl ad e
1.5-mm-diameter cutter pen
(red)
Plunger
1.5-mm-dia. blades
Plunger-cap
Turn the blade-length adjustment knob in the direction indicated by the arrow
to retract the blade into the plunger.
Turn the plunger cap in the counter-clockwise direction to remove it from the
plunger.
Remove the blade from inside the plunger cap.
Remove a new blade from its pack. Insert the new blade into the hole provided
in the plunger cap.
With the blade inserted into the plunger cap, screw on the plunger from above.
0.9-mm-diameter cutter pen
Blade-length adjustment knob
(blue)
Plunger
Plunger-cap
cross-section
0.9-mm-dia. blades
Spring
Plunger-cap
