Attaching a Pen to the Two-Pen Holder (Option)

The two-pen holder is a factory-installed option, and cannot be retrofitted.
1
2
3
O u t o f t h e B o x : A t ta c h i n g a C u t t e r P en

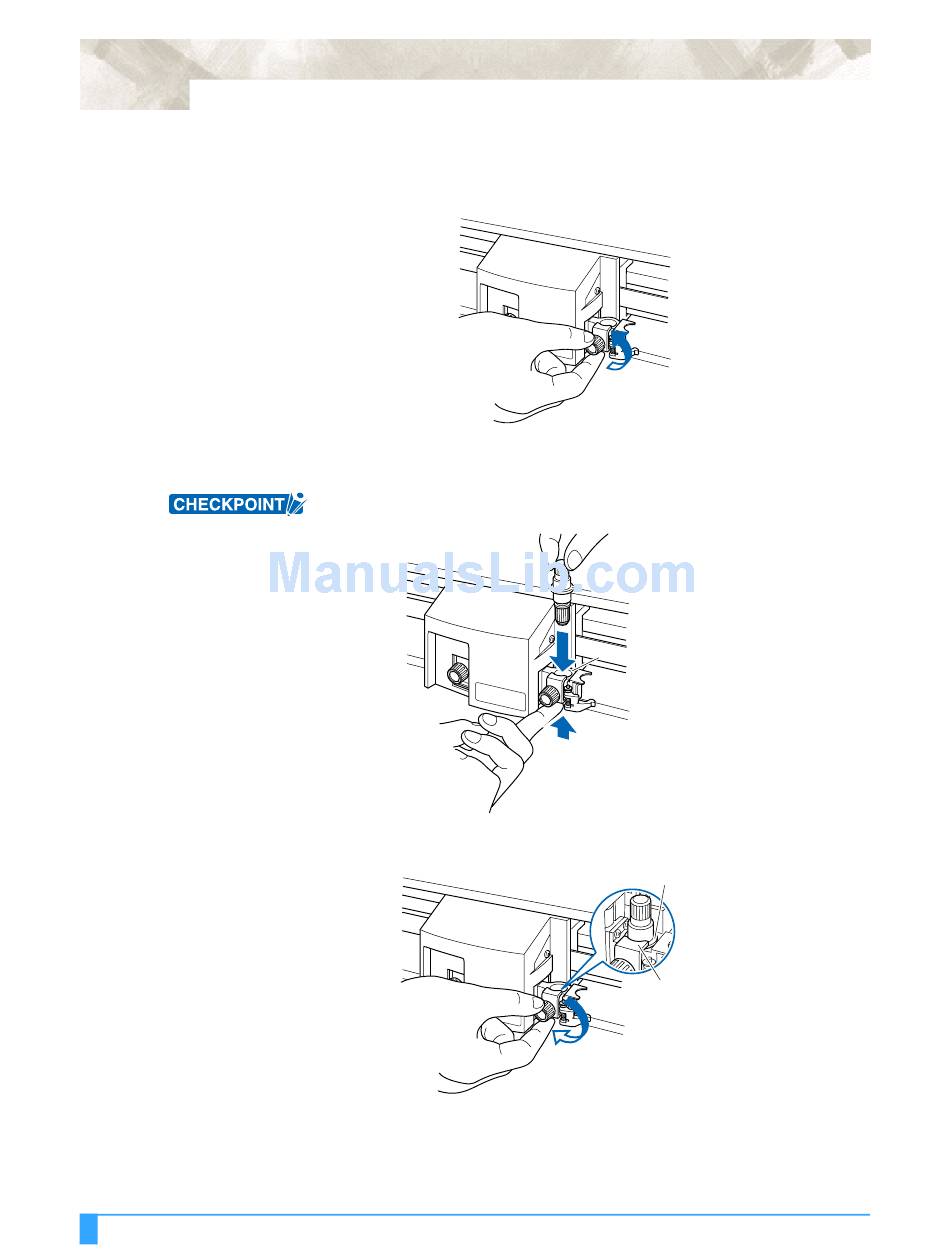

Loosen the pen holder screw.
While pushing the pen holder in the upward direction, push the pen all the way
into the holder until its flange contacts the upper part of the holder.
When you push the pen holder with your fingers, the blade tip may be
protruding. Take care not to cut your fingers.
Make sure that the pen bracket is engaged on the pen's flange, and then
tighten the screw.
Flange
Upper part of pen holder
Flange
Bracket to hold pen
