Master/Slave G.703; Figure 3-17. G.703 Master Slave Configuration - Comtech EF Data SDM-650B Installation And Operation Manual

SDM-650B Satellite Modem

3.6.1.2 Master/Slave G.703

Refer to Figure 3-17 for the G.703 master/slave configuration.
Note: There is no loop timing selection on board for G.703. It is assumed that any G.703
termination equipment will extract the clock from the satellite signal, and turn it around
for re-transmitting. The settings for the master and slave modems are the same as listed in
previous sections.
Rev. 5

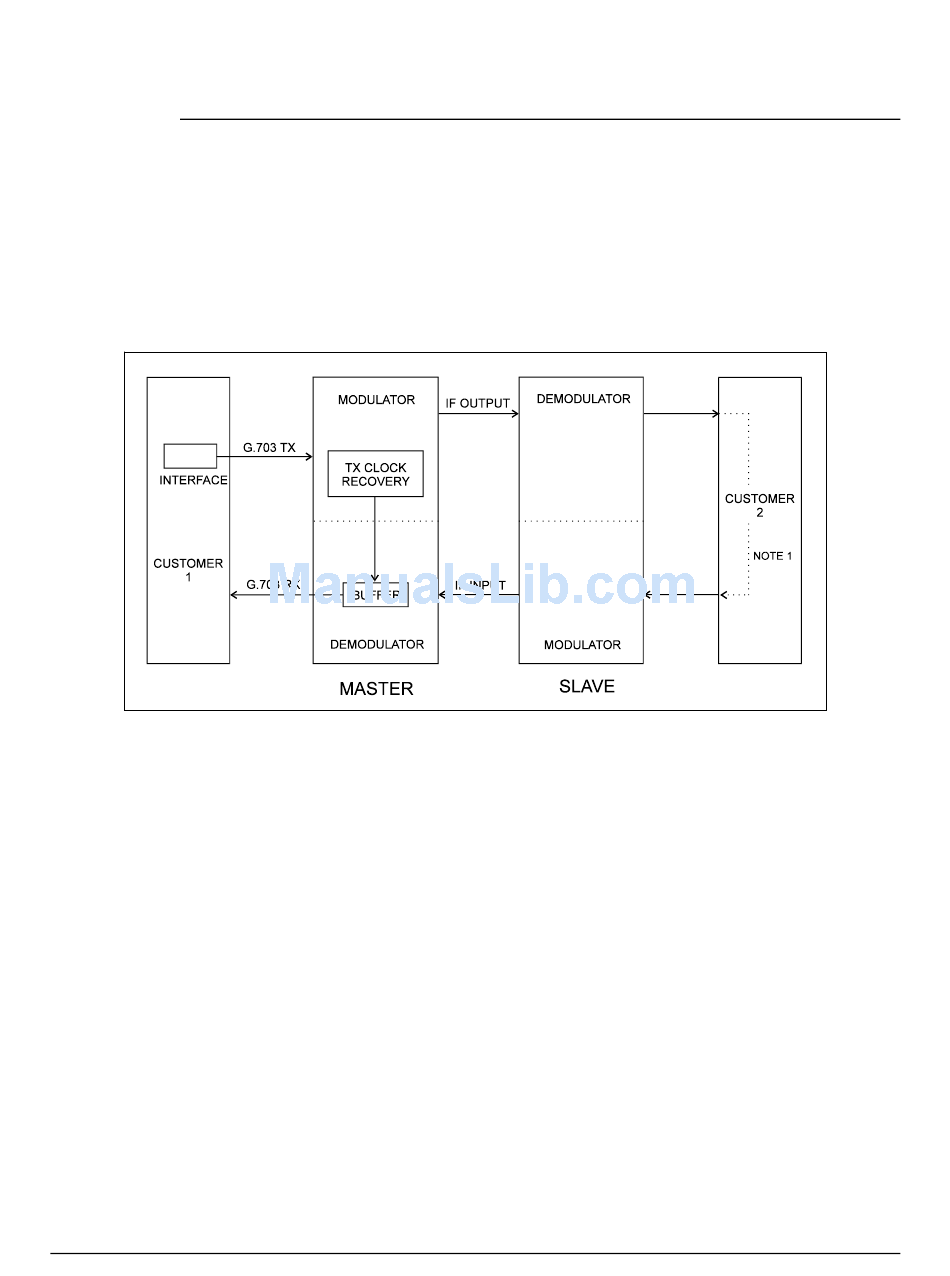

Figure 3-17. G.703 Master Slave Configuration
