Figure 3-3. Rs-422 And Mil-Std-188-114 Block Diagram - Comtech EF Data SDM-650B Installation And Operation Manual

Configuration
Electrical characteristics of the RS-422 interface signals are defined in EIA-STD-RS-422.
Electrical characteristics of the MIL-STD-188-114 interface signals are defined in
MIL-STD-188-114 and MIL-STD-188-100.
•
•
•
SCT
TX CLOCK
M
TX DATA
O
D
RX CLOCK
E
M
RX DATA
COMMON EQUIPMENT
MODULATOR
DEMODULATOR
DATA BUS TO M & C

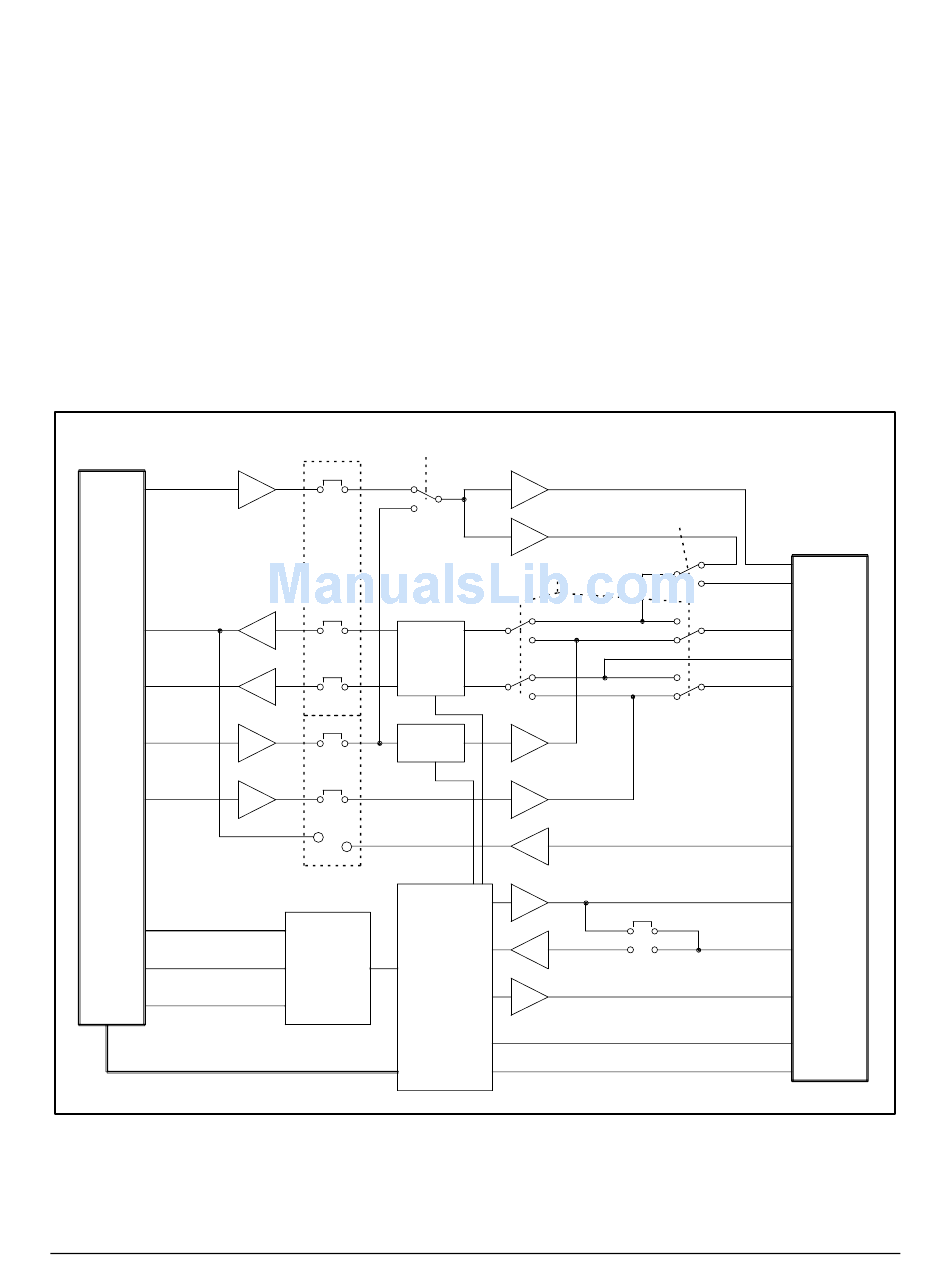

Figure 3-3. RS-422 and MIL-STD-188-114 Block Diagram

3–8
EIA-STD-RS-449 provides details of the mechanical interface.
MIL-STD-188-114 defines signal levels, offsets, termination resistors, etc.
MIL-STD-188-100 specifies such characteristics as signal quality and clock/data
phase relationships.
