Rear Panel

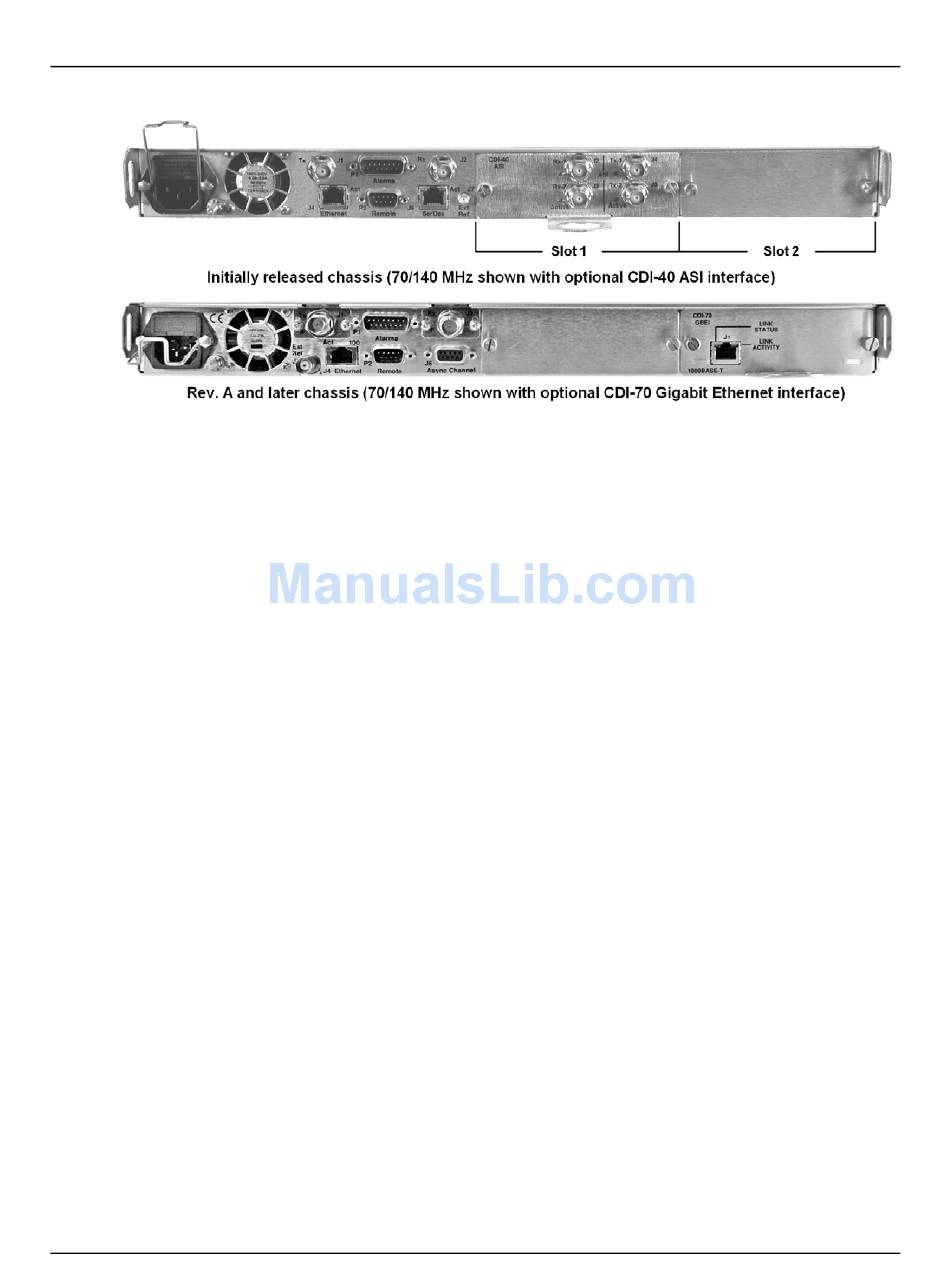

Figure 1-6 shows the rear panel of the CDM-710. External cables are attached to connectors on the
rear panel of the CDM-710. Each connector is described in detail in Chapter 3. REAR PANEL
CONNECTORS
Figure 1-6. Rear Panel View
PINOUTS.
AND
1–8
Revision 11
MN/CDM710.IOM
