CDM-710 Broadcast Satellite Modem
CDI-40 ASI Interface Module

8.3.2 ASI Interface Defaults

Default settings for the interface are as follows:
CDI-40 Interface Defaults
Parameter
Mode
Active Tx Input
Data or Clock
ASI Frame Format
Loss of Data
Loop Bandwidth

8.3.3 1:1 Applications

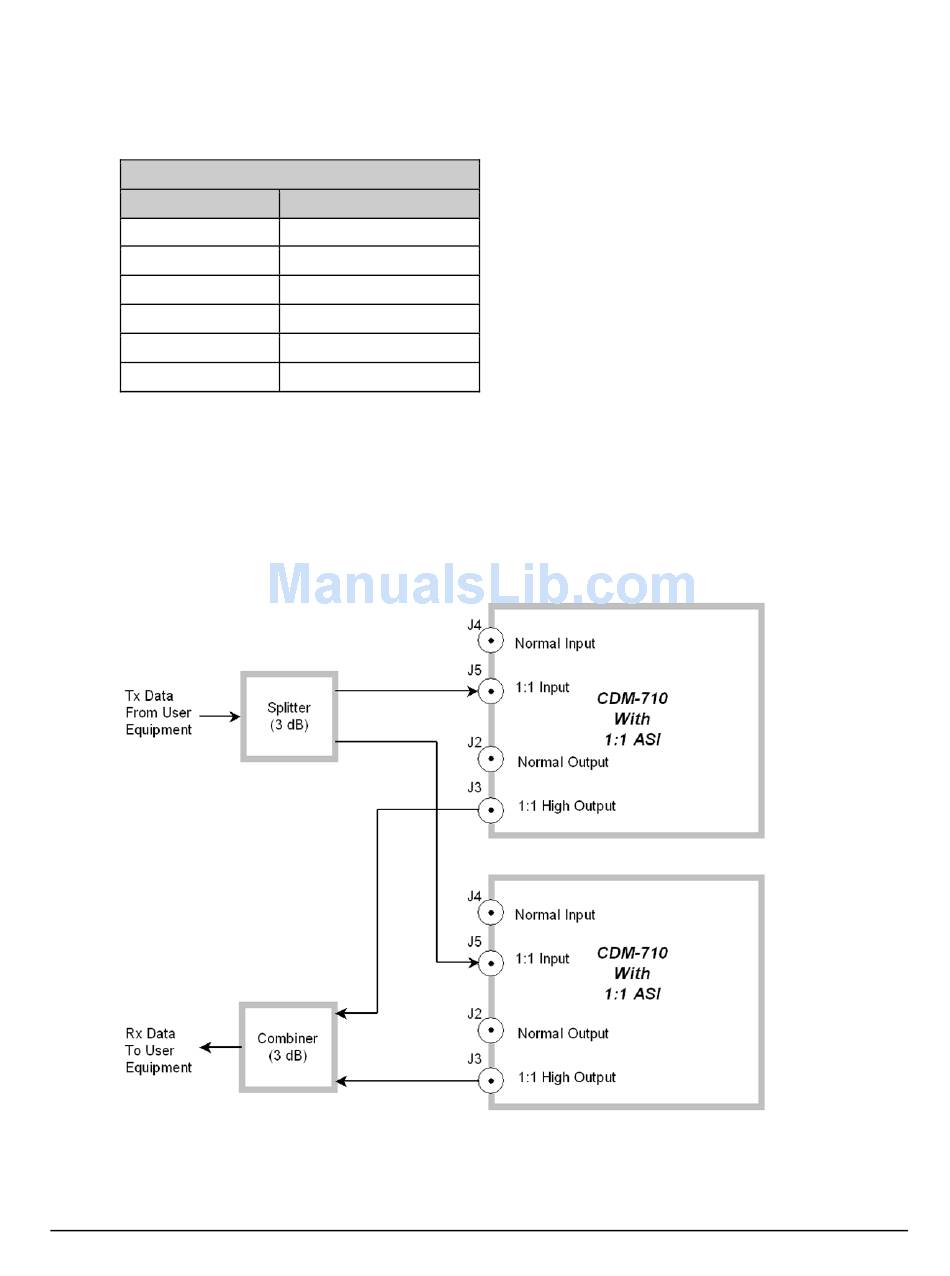

Figure 8-3 depicts the typical operation of the CDM-710 with ASI in 1:1 Redundancy (using the
PL/10881-4 CDI-40 ASI Interface). This diagram applies to CDM-710 1:1 operations via the CRS-180
70/140 MHZ 1:1 Redundancy Switch (for use with the CDM-710) or the CRS-170A L-Band 1:1
Redundancy switch (for use with the CDM-710L). For more information about 1:1 Redundant operations
with either of these switches, refer to the respective Installation and Operation Manual.

Figure 8-3. Typical PL/10881-4 CDI-40 ASI Interface 1:1 Application

Default Setting
1, ASI active
J4
Normal
188
Alarm
Wide
8–5
Revision 11
MN/CDM710.IOM
