CDM-710 Broadcast Satellite Modem
Ethernet Management
6.5.4.4.2 Stats | Events & Statistics
Use the 'Stats | Events & Statistics' page (Figure 6-11) to review a scrollable record of the
modem's stored events. Note the following:
•
Read Next Five Events: Select to buffer the next group of five stored events into the
scrollable Events window.
•
Clear Events Log: Select to wipe clean the stored events log.
•
Initialize Events Pointer: Select to reset the log's internal pointer.
•
Unread Events: Displays the total number of unread stored events in the Events window.
As stored event groups are displayed, this number adjusts downward accordingly.
Once the desired settings have been entered, click [Submit] as needed to execute update of the
scrollable window contents.

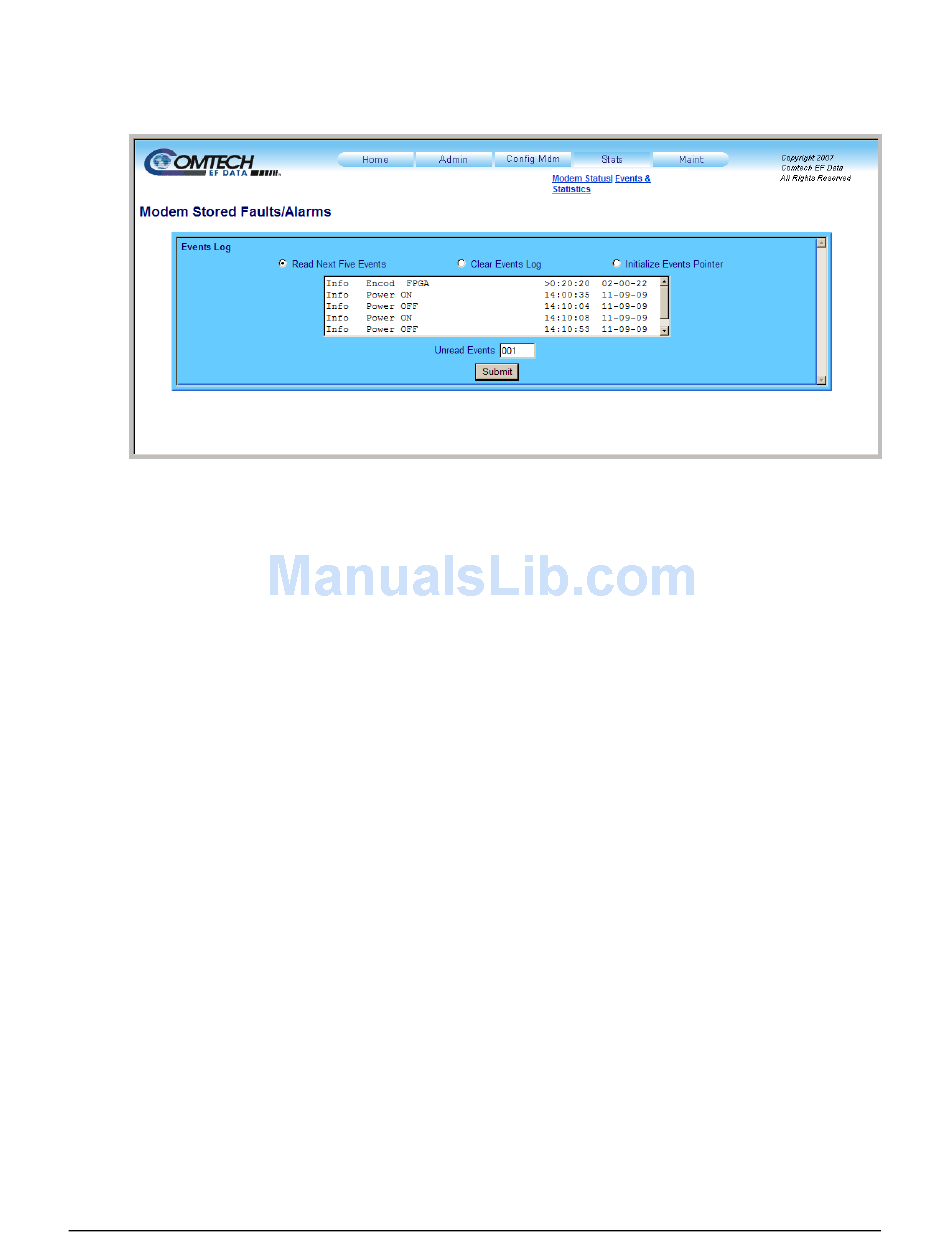

Figure 6-11. Stats | Events & Statistics page
