CDM-710 Broadcast Satellite Modem
Front Panel Operation
5.1.1

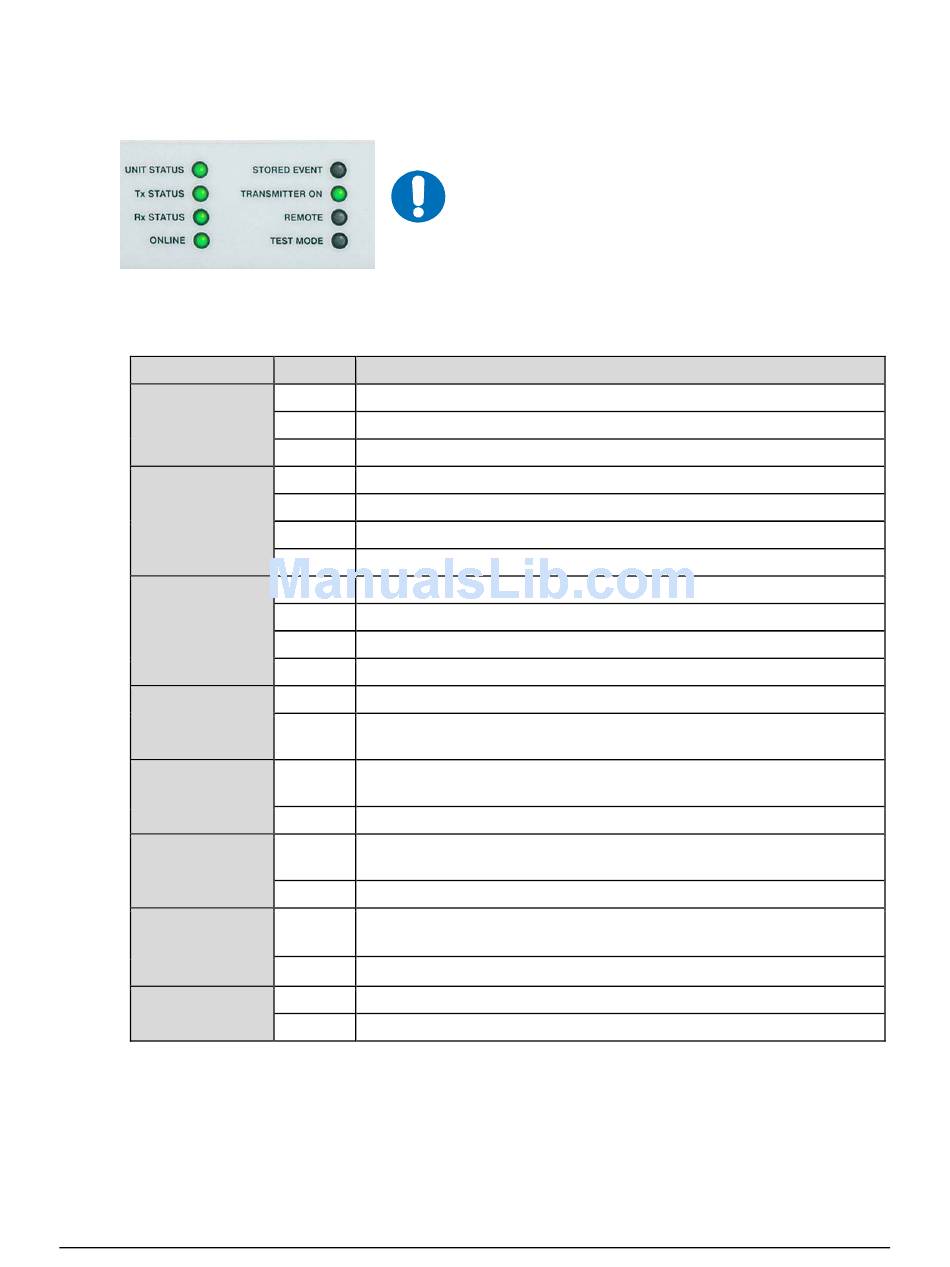

Front Panel LED Indicators

The behavior of the eight front panel LEDs adjacent to the keypad indicate the operation status of
the CDM-710, and are described as follows:
LED
UNIT STATUS
Tx STATUS
Rx STATUS
ONLINE
STORED EVENT
TRANSMITTER ON
REMOTE
TEST MODE
IMPORTANT
COLOR CONDITION/STATE
Green No Unit Faults or Alarms exists.
Orange A Unit Alarm exists.
Red A Unit Fault exists.
Green No Tx Traffic Faults or Alarms exists.
Orange A Tx Traffic Alarm exists.
Red A Traffic Fault exists.
Off Unit not configured for Modulator.
Green No Rx Traffic Faults or Alarms exists.
Orange An Rx Traffic Alarm exists.
Red An Rx Fault exists.
Off Unit not configured for Demodulator.
Green The Unit is On Line, and carrying traffic
The Unit is Off Line (standby) – forced by externally connected 1:1 or 1:N redundancy
Off
system
There is a Stored Event in the log that may either be viewed from the front panel or
Orange
retrieved via the remote control interface.
Off There are no Stored Events.
Transmitter is currently on. This indicator reflects the actual condition of the transmitter,
Green
as opposed to the programmed condition.
Off Transmitter is currently OFF.
The Unit is in Remote Communication Mode.
Green
Local monitoring is possible, but no local control.
Off The Unit is in Local Mode – remote monitoring is possible, but no remote control.
Green A Test Mode is selected; e.g., IF Loopback.
Off There is no Test Mode currently selected.
In general, the Alarm relay state will reflect the
state of the Front Panel LEDs. For instance, if the
Unit Status LED is red, the Unit Alarm relay will
be active, etc. The one exception is the Transmit
Traffic relay; this will only be activated if a
Transmit Traffic Fault exists – it does not reflect
the state of the Tx carrier.
