CDM-710 Broadcast Satellite Modem
Ethernet Management
6.5.4.3.3

Config Mdm | Modem Utilities

Use the 'Config Mdm | Modem Utilities' page (Figure 6-9) to perform the following Modem
Utilities tasks:
Select Boot Image
Use the dropdown menu to select the New (boot) Image as 1 or 2; click [Submit] to save this
setting.
Perform Soft Reboot
Click [Reboot Now] to restart the unit, using the most recently saved configurations/settings.
Saving and Loading Configurations;
Use the dropdown menus to manage operational configurations for Config 0 through Config 9;
click [Save] to store or [Load] to restore a configuration.

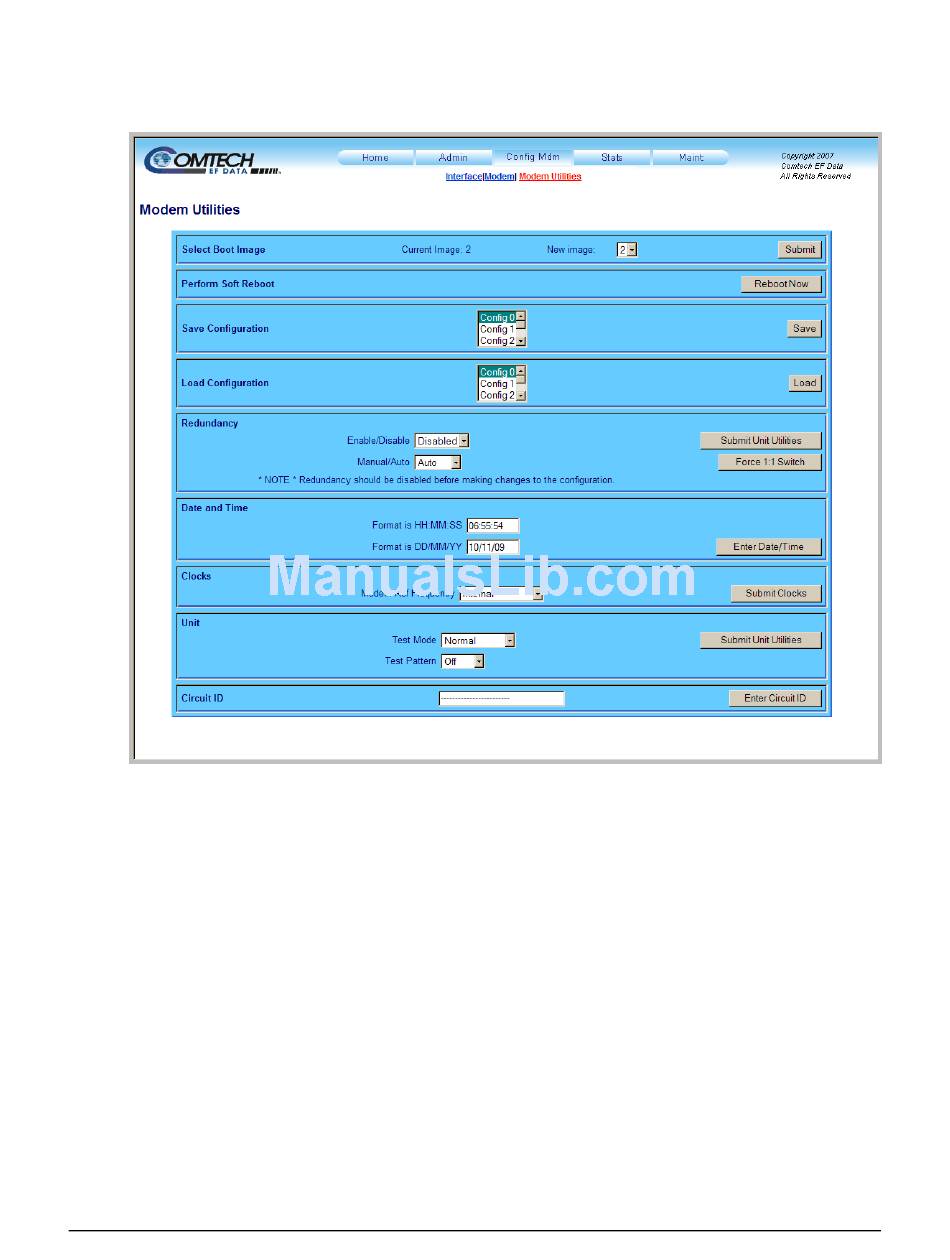

Figure 6-9. Config Mdm | Modem Utilities page

6–19
Revision 11
MN/CDM710.IOM
