CDM-710 Broadcast Satellite Modem
Ethernet Management
6.5.4.4 Stats (Statistics) Pages
The Stats pages provide the user with status, event logging, and operational statistics windows.
6.5.4.4.1

Stats | Modem Status

The 'Stats | Modem Status' page (Figure 6-10) provides a read-only status
viewing/configuration information page pertaining to:
•
General modem operating and configuration information;
•
Alarms;
•
Tx and Rx Parameters;
•
Tx and Rx Installed options (Data Interfaces, FAST, etc.).
Click [Refresh] as needed to execute update of the information provided on this page.

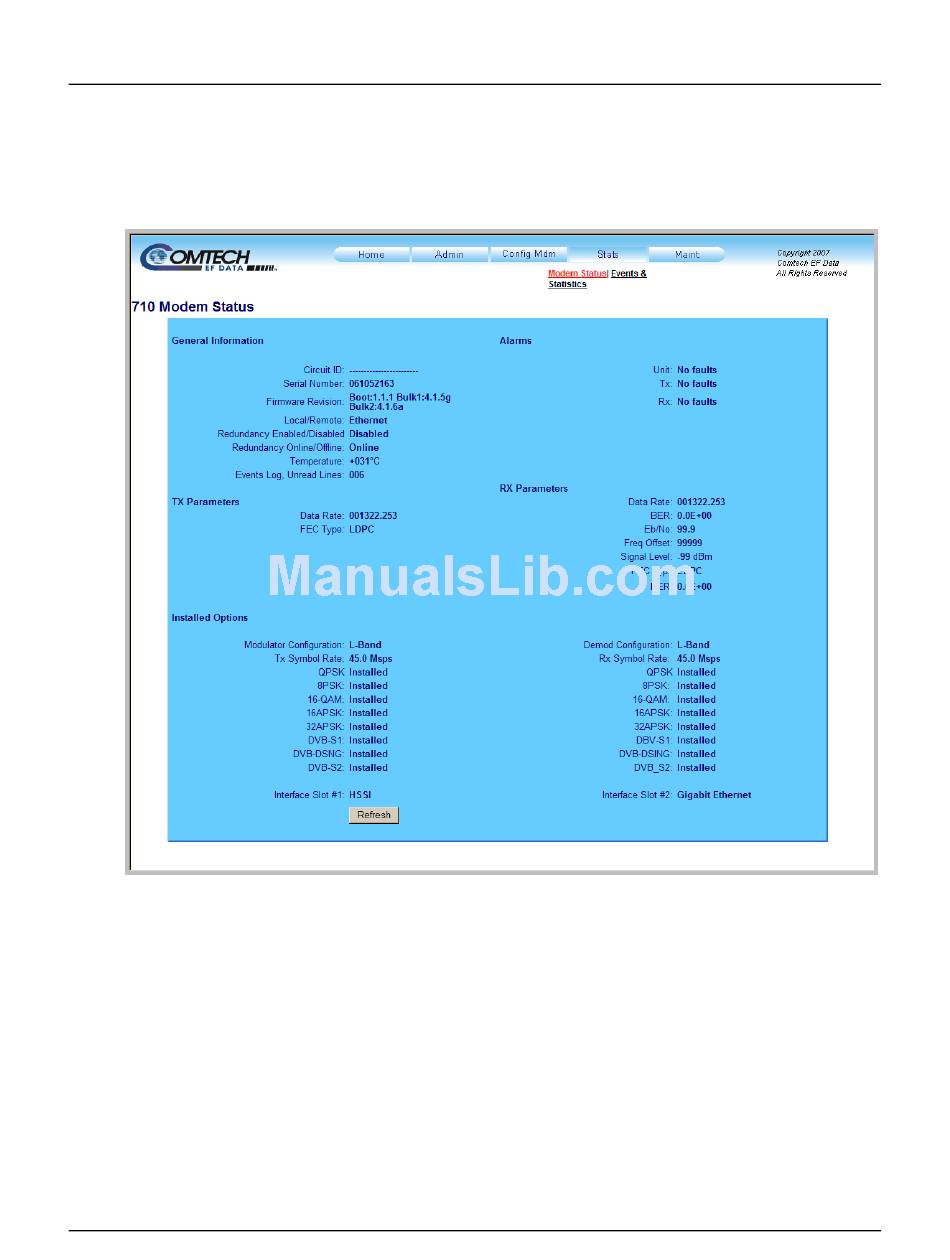

Figure 6-10. Stats | Modem Status page

6–21
Revision 11
MN/CDM710.IOM
