CDM-710 Broadcast Satellite Modem
CDI-70 1000 Base-T Gigabit Ethernet (GigE) Interface Module
10.3 J1 Connector Pinout, RJ45

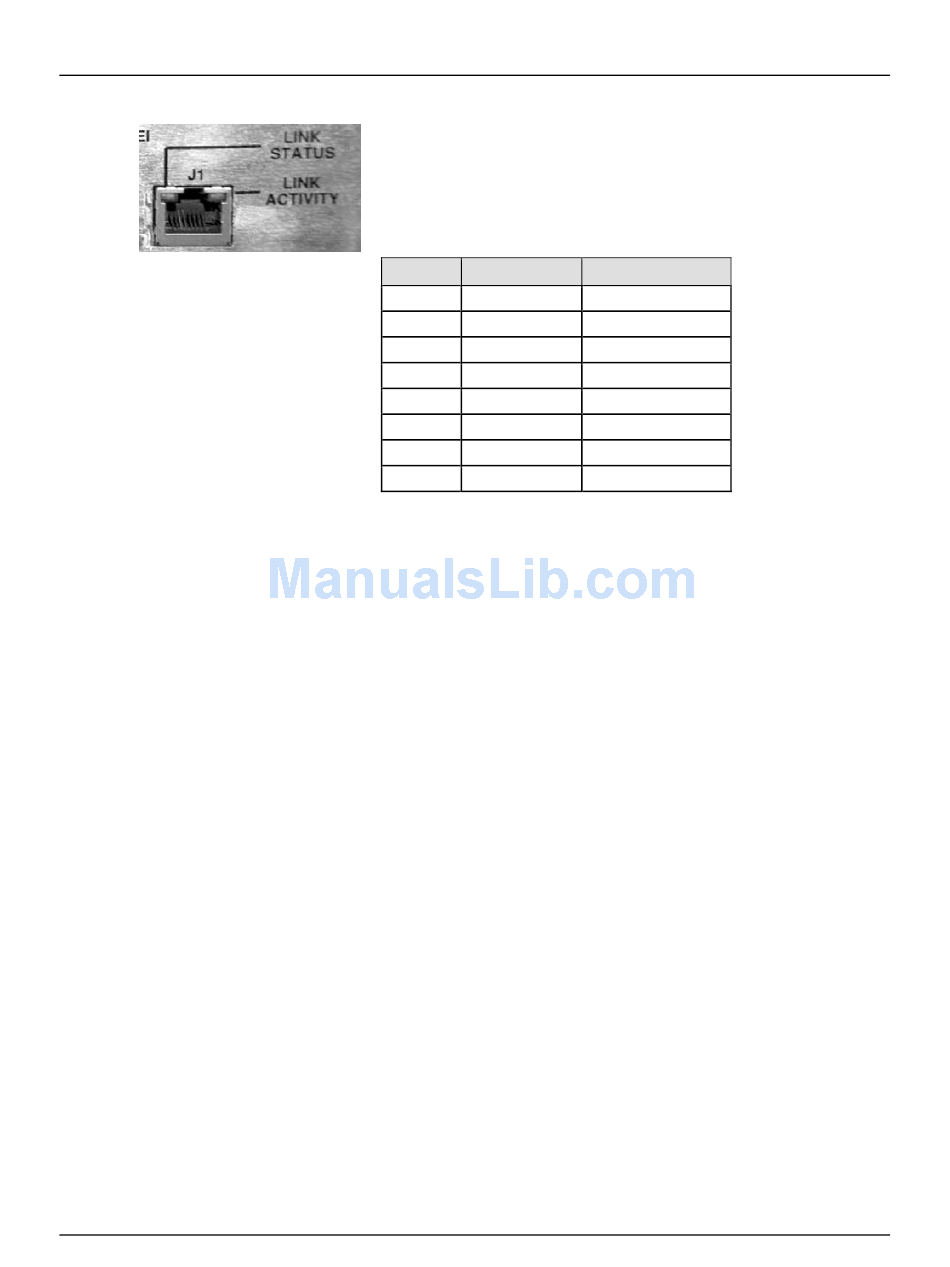

The J1 LAN interface is comprised of one IEEE 802.3ab
1000Base-T copper compliant female RJ-45 connector. This
connector features Light-Emitting Diode (LED) indicators
labeled LINK STATUS and LINK ACTIVITY. The connector
pinout is as follows:
Pin # Description
1 BI_DA+
2 BI_DA-
3 BI_DB+
4 BI_DC+
5 BI_DC-
6 BI_DB-
7 BI_DD+
8 BI_DD-
10–3
MN/CDM710.IOM
Direction
bidirectional
bidirectional
bidirectional
bidirectional
bidirectional
bidirectional
bidirectional
bidirectional
Revision 11
